NMP1K2

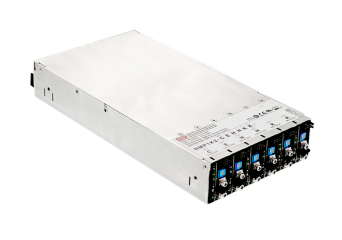

NMP is a series of modular, configurable MEAN WELL power supplies with a 1U profile. The series consists of models with 2 powers: 650 and 1200W. These are not the powers of each power supply, but the maximum power of the modules in a given housing. NMP650 can accommodate up to 4 modules, MNP1K2 up to 6 modules. The modules are available in two versions:

• with one output voltage (NMS-240)
• with two different output voltages (NMD-240)

Each of the modules is available in 4 different versions of the output voltage:

• type C - for 3 ~ 6VDC voltage
• type E - for voltage 6 ~ 15VDC
• type H - for 15 ~ 30VDC voltage
• type K - for voltage 30 ~ 55VDC

The NMP series has remote control functions such as: remote switching on and off of the device, remote voltage and current control and DC-OK signal output. The power supplies also meet medical safety standards (PN-EN 60601-1, IEC 62368-2), and have the required insulation level of 2xMOPP.

Application examples:

• Medical equipment
• Laboratory diagnostic equipment
• Devices of measuring systems
• Telecommunications equipment
• Power supply for industrial automation components
