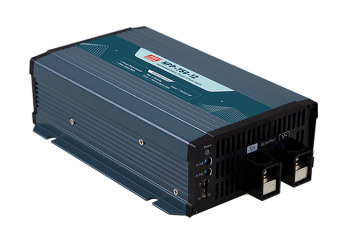

NPP-750

Battery charger with power adapter mode : NPP-750-12, NPP-750-24, NPP-750-48,

Producător: MEAN WELL
Producător: MEAN WELL
  • Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
  • Model dedicated to lead-acid batteries
  • Possibility to choose the operating mode: charger / power supply
  • Fan cooling
  • Regulation of the output current and voltage with a potentiometer
  • A wide range of acceptable operating temperatures: -30 ~ + 70 ° C
  • Short-circuit, overvoltage, temperature and reverse polarity protection
  • Remote on / off
  • LED to indicate device status
  • Compliance with EN62368, EN60335-1 / 2-29 standards
  • 3-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 846,60 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

NPP-750 is a series of 722.4 ~ 759.4W chargers dedicated to lead-acid batteries. The device can operate in the charger mode or as an ordinary power supply. The mode is selected by connecting or disconnecting the connector on the housing. The output current and voltage are regulated by a potentiometer on the housing. The output voltage can be adjusted in the following ranges (depending on the model): 10.5 ~ 21V, 21 ~ 42V or 42 ~ 80VDC.

The device is overvoltage and temperature protected. The acceptable operating temperature range is: -30 ~ + 70 ° C.



Application examples:

  • Vehicle battery charging
  • Power backup systems
  • Power supply for industrial automation devices

Specificație tehnică

  • NPP-750: Battery charger with power adapter mode 722.4~759.4W - SPECIFICATION
Model Output Efficiency Plug Dimensions
NPP-750-12 12V, 43A 92% screw terminal 230x158x67mm
NPP-750-24 24V, 22.5A 93% screw terminal 230x158x67mm
NPP-750-48 48V, 11.3A 93% screw terminal 230x158x67mm
