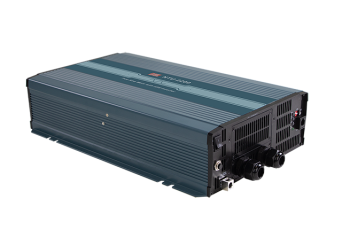

NTU-2200
DC / AC converter with UPS mode and 2200W: NTU-2200-212, NTU-2200-224, NTU-2200-248
- Compact housing and low weight
- Built-in UPS mode (AC by-pass)
- True sine wave at the output (THD <3%)
- Overload capacity up to 4400W (60ms)
- Fan cooling
- A wide range of acceptable operating temperatures: -25 ~ + 70 ° C
- Device status LED
- Short-circuit, overload and temperature protection
- Reverse polarity protection, low and high voltage alarm on input
- Dedicated to lead-acid and lithium-ion batteries
- Built-in RS-232 communication protocol
- Remote control possible
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTU-2200-212EUDC/AC inverter EU 2200W 10.5~15V-230V 50HzÎn stocGaranție: 3.778,80 RON4.647,92 RONIntră în cont pentru a vedea prețurile NTU-2200-212EUDC/AC inverter EU 2200W 10.5~15V-230V 50HzDisponibilitate:În stocPreț net:3.778,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTU-2200-224EUDC/AC inverter EU 2200W 21~30V-230V 50HzÎn stocGaranție: 3.778,80 RON4.647,92 RONIntră în cont pentru a vedea prețurile NTU-2200-224EUDC/AC inverter EU 2200W 21~30V-230V 50HzDisponibilitate:În stocPreț net:3.778,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNTU-2200-248EUDC/AC inverter EU 2200W 42~60V-230V 50HzÎn stocGaranție: 3.778,80 RON4.647,92 RONIntră în cont pentru a vedea prețurile NTU-2200-248EUDC/AC inverter EU 2200W 42~60V-230V 50HzDisponibilitate:În stocPreț net:3.778,80 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareCarry handleCarry handle for NPB, NTS, NTU seriesÎn stocGaranție: 26,50 RON32,60 RONIntră în cont pentru a vedea prețurile Carry handleCarry handle for NPB, NTS, NTU seriesDisponibilitate:În stocPreț net:26,50 RON
Descriere
The compact DC / AC converter MEAN WELL NTU-2200 with a rated power of 2200W and a real sine wave (true sine, THD> 3%) offers the user a configurable output voltage with the following values: 200/220/230 / 240VAC. The selection of the output voltage and frequency is easy with the use of a switch on the housing. The device can be powered by 12/24 / 48VDC with current values of 250/120 / 60A, respectively. The converter works with both lithium-ion and lead-acid batteries.
The device is protected against excessive temperature, short circuit and overcurrent. In order to minimize the risk of excessive battery discharge, the NTU-2200 converter is equipped with an alarm. After the alarm is triggered and the voltage drops further, the device turns off, protecting the battery.
It is also possible to temporarily overload the converter: 2530W (3 min.), 3300W (10 s), 4400W (0.6 s). This functionality allows you to connect a device with a higher inrush current (e.g. electric tools).
The NTU-2200 converter is equipped with a remote control function using the accessory MEAN WELL controller. The RS-232 communication port enables constant monitoring of the device's operating parameters and reacting to any changes (e.g. when installing off-grid panels).
The NTU series is equipped with a UPS mode: during normal operation, the converter supplies the receivers directly from the AC mains. In the event of a mains voltage failure, the converter will switch over to battery power within 10 ms, thus maintaining the power supply.
Specificație tehnică
- NTU-2200: DC / AC converter with UPS mode and 2200W - DETAILS
| Model | Power | Input VDC | Output VAC/Hz | Socket | Efficiency | Dimensions |
| NTS-2200-212EU | 2200W | 10-16.5 | 230/50 | EU | 90% | 440x270x98mm |
| NTS-2200-224EU | 2200W | 20-33 | 230/50 | EU | 93% | 440x270x98mm |
| NTS-2200-248EU | 2200W | 40-66 | 230/50 | EU | 93% | 440x270x98mm |
