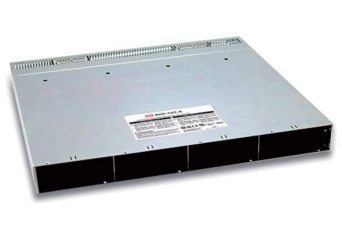

DHP-1UT
Rack enclosure for power and charging modules: DBR-3200-24, DBR-3200-48, DRP-3200-24, DRP-3200-48
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- 1U profile housing for up to 4 modules
- Support hot-swap function
- Built-in PMBus interface
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDHP-1UT-Acase 1U for RACK 19" with terminal blockOut of stock Garanție: 3.083,60 RON3.792,83 RONIntră în cont pentru a vedea prețurile DHP-1UT-Acase 1U for RACK 19" with terminal blockDisponibilitate: Out of stockPreț net:3.083,60 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDHP-1UT-Bcase 1U RACK 19" for NCP-3200 24V/48VOut of stock Garanție: 2.450,80 RON3.014,48 RONIntră în cont pentru a vedea prețurile DHP-1UT-Bcase 1U RACK 19" for NCP-3200 24V/48VDisponibilitate: Out of stockPreț net:2.450,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDHP-1UT-BHVcase 1U RACK 19" for NCP-3200 380VOut of stock Garanție: 2.450,80 RON3.014,48 RONIntră în cont pentru a vedea prețurile DHP-1UT-BHVcase 1U RACK 19" for NCP-3200 380VDisponibilitate: Out of stockPreț net:2.450,80 RON
Descriere
The DHP-1UT is a 19 ”rack enclosure dedicated to DRP-3200-24, DRP-3200-48 power modules and DBR-3200-24, DBR-3200-48 charging modules. Thanks to the possibility of connecting up to 4 modules into one system with a total power of 12800 W and connecting two systems in parallel (25600 W), the device can be used as a charging station for electric vehicles. DBR-3200 charging modules will prove in applications requiring charging and maintaining the voltage of large batteries, e.g .:
- UPS systems
- emergency power supply
- charging batteries, e.g.
- boats industrial solutions
The power supply modules can be used, for example, in supplying large switchboards and telecommunications transmitters, and (thanks to the remote control functions) in redundant power supply systems. The ability to connect individual modules (DBR-3200-24, DBR-3200-48, DRP-3200-24, DRP-3200-48, DHP-1U) allows you to create a centrally controlled DC power supply system for various industrial processes.
Specificație tehnică
DHP-1UT - Rack enclosure for power and charging modules - SPECIFICATION
| Model | Description | Dimensions |
| DHP-1UT-A | obudowa 1U dla modułów DBR/DRP | 400x482.6x44mm |
