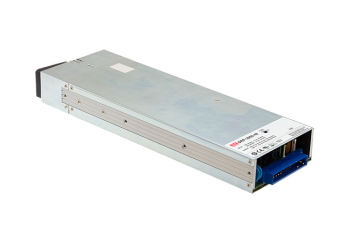

DRP-3200
System of modular power supplies for a rack cabinet : DRP-3200-24, DRP-3200-48
- Wide input voltage range: 90 ~ 264VAC, 127 ~ 370VDC
- Active PFC power factor improvement function
- Up to 94.5% efficiency
- Active fan cooling
- The ability to remotely control the current and voltage output
- MOSFET transistors supporting hot-swap function
- Possibility to connect up to 4 modules into one system with a total power of up to 12800W using the DHP-1U module
- Built-in IIC, PMBus interface
- Short circuit, overcurrent, overvoltage and temperature protection
- Installation in a rack cabinet - 1U profile
- 5-year warranty
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDRP-3200-24RACK 19" power supply 3192W 24V 133AOut of stock Garanție: 4.874,50 RON5.995,64 RONIntră în cont pentru a vedea prețurile DRP-3200-24RACK 19" power supply 3192W 24V 133ADisponibilitate: Out of stockPreț net:4.874,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDRP-3200-48RACK 19" power supply 3216W 48V 67AOut of stock Garanție: 4.874,50 RON5.995,64 RONIntră în cont pentru a vedea prețurile DRP-3200-48RACK 19" power supply 3216W 48V 67ADisponibilitate: Out of stockPreț net:4.874,50 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugarecase 1U for RACK 19" with terminal blockOut of stock Garanție: 3.083,60 RON3.792,83 RONIntră în cont pentru a vedea prețurile case 1U for RACK 19" with terminal blockDisponibilitate: Out of stockPreț net:3.083,60 RON
Descriere
DRP-3200 is a single-output 3200W AC / DC power supply dedicated to use in rack cabinets. The power supply is available in two versions of the output voltage: 24V and 48V and a wide range of input voltage: 90 ~ 264VAC, 127 ~ 370VDC.
The device has extensive remote communication functions. Through the PMBus interface, it is possible to remotely change the output current and voltage, and remotely turn on and off the module. PMBus communication also enables constant preview and monitoring of the device's operating status, output and input parameters. The operating status of the device is also shown by an LED diode on the housing.
Application examples
Thanks to the possibility of connecting up to 4 modules into one system with a total power of 12800 W and connecting two systems in parallel (25600 W), the device can be used as a charging station for electric vehicles. The ability to connect individual modules (DBR-3200-24, DBR-3200-48, DRP-3200-24, DRP-3200-48, DHP-1U) allows you to create a centrally controlled DC power supply system for various industrial processes. In addition to the above-mentioned applications, MEAN WELL DRP-3200 will also be used, for example, in powering large telecommunications exchanges and transmitters, and (thanks to the remote control functions) in redundant power supply systems.
Specificație tehnică
DRP-3200: System of modular power supplies for a rack cabinet - SPECIFICATION
| Model | Output | Tolerance | Noise | Efficiency | Dimensions |
| DRP-3200-24 | 30V, 133A | +/-1% | 300mV | 93,5% | 325x107x41mm |
| DRP-3200-48 | 58,8V, 67A | +/-1% | 480mV | 94,5% | 325x107x41mm |
