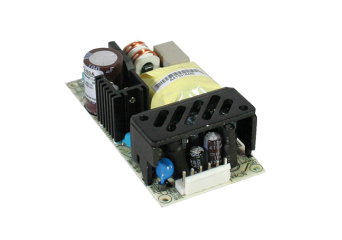

RPD-60
2 - output medical power supplies, PCB Open Frame type, with PFC function: RPD-60A, RPD-60B
Producător: MEAN WELL
Producător: MEAN WELL
- input voltage 90-264VAC 120-370VDC
- protections: short circuit, overvoltage and overload protection
- adjustable output voltage in the range of -5 ~ + 10%
- cooling with open air circulation
- working temperature -20 ~ + 65 ° C
- compliance with medical standards
- low leakage current
- small size
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 79,60 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-60Aopen frame power supply 60W 5V, 12VOut of stock Garanție: 79,60 RON97,91 RONIntră în cont pentru a vedea prețurile RPD-60Aopen frame power supply 60W 5V, 12VDisponibilitate: Out of stockPreț net:79,60 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-60Bopen frame power supply 60W 5V, 24VOut of stock Garanție: 79,60 RON97,91 RONIntră în cont pentru a vedea prețurile RPD-60Bopen frame power supply 60W 5V, 24VDisponibilitate: Out of stockPreț net:79,60 RON
Descriere
The series of 2,3-output medical power supplies without housing is designed for use in medical applications, automation, electronics, telecommunications, etc. Compliance with medical standards guarantees a high degree of safety. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. The derived input and output connectors facilitate the connection of wires.
Specificație tehnică
-
RPD-60: 54~59W DETAILS
Model Output Tolerance Ripple & noise Efficiency Max power Dimension RPD-60A 5V, 0.5~5.5A
12V, 0.2~3.2A+3%,-4%
+/-6%80mV
80mV78% 54W 101.6x50.8x29mm RPD-60B 5V, 0.4~6.0A
24V, 0.2~2.6A+3%,-2%
+8%,-4%80mV
100mV82% 59W 101.6x50.8x29mm
