- Charging lead-acid, gel, AGM and lithium-ion batteries
- Programmable charging characteristics
- Built-in IIC, PMBus interface
- Wide input voltage range (90 ~ 264VAC 127 ~ 370VDC)
- Active PFC power factor improvement function
- Up to 94.5% efficiency (DBU-3200-48)
- MOSFET transistors
- Active fan cooling Short circuit, over voltage and temperature protection
- Signaling the absence and too low battery voltage
- Possibility to connect 2 devices in parallel
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDBU-3200-24battery charger 3200W 28.8V 110AÎn stocGaranție: 3.119,00 RON3.836,37 RONIntră în cont pentru a vedea prețurile DBU-3200-24battery charger 3200W 28.8V 110ADisponibilitate:În stocPreț net:3.119,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDBU-3200-48battery charger 3200W 57.6V 55AÎn stocGaranție: 3.119,00 RON3.836,37 RONIntră în cont pentru a vedea prețurile DBU-3200-48battery charger 3200W 57.6V 55ADisponibilitate:În stocPreț net:3.119,00 RON
Descriere

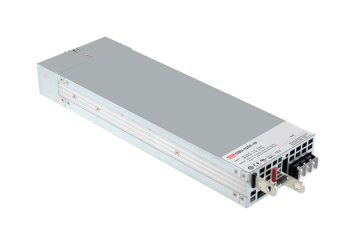

The DBU-3200 is a 3200W single-output AC / DC charger. The charger is available in two versions of the output voltage: 24V and 48V and a wide range of input voltage: 90 ~ 264VAC, 127 ~ 370VDC.
The device has a built-in 3-stage charging characteristics programmed for optimal charging of different types of batteries (lead acid, lithium ion). The user also has the option of independently programming his own charging curve. Curve programming is possible thanks to the programmer of the Mean Well SBP-001 chargers and the software of the Mean Well company. In the absence of an external programmer, it is possible to manually select the charging current and voltage using a potentiometer or PMBus interface.
The DBU-3200 charger has a number of protection functions (overvoltage, short circuit protection, temperature), as well as low voltage indication or no battery connection. The DBU-3200 charger will work best in applications that require charging and maintaining the voltage of large batteries, e.g.
- UPS systems
- emergency power supply
- charging batteries, e.g. boats
- industrial solutions
- charging electric vehicles
Specificație tehnică
- DBU-3200: Programmable battery charger - SPECIFICATION
| Model | Output | Recommended capacity | Efficiency | Dimensions |
| DBU-3200-24 | 28.8V, 110A | 330~1000 Ah | 93,5% | 325.8x107x41mm |
| DBU-3200-48 | 57.6V, 55A | 180~550 Ah | 94,5% | 325.8x107x41mm |
