- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- 63mm slim width
- Built-in passive PFC function compliance to EN61000-3-2
- High efficiency 92% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Full power between -30~+60ºC
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL61010(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- DC OK relay contact
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale

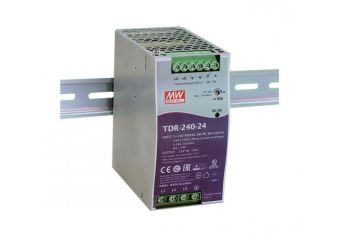

TDR-240
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareTDR-240-24DIN rail power supply 3-phase 240W 24VÎn stocGaranție: 393,60 RON484,13 RONIntră în cont pentru a vedea prețurile TDR-240-24DIN rail power supply 3-phase 240W 24VDisponibilitate:În stocPreț net:393,60 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareTDR-240-48DIN rail power supply 3-phase 240W 48VÎn stocGaranție: 393,60 RON484,13 RONIntră în cont pentru a vedea prețurile TDR-240-48DIN rail power supply 3-phase 240W 48VDisponibilitate:În stocPreț net:393,60 RON
Descriere
TDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-240 is designed with metal housing that enhances the units power dissipation. With working efficiency up to 92%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL61 010-1, UL6101 0-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved, and etc.) make TDR-240 a very competitive power supply solution for industrial applications.
Available models:
- 24V: TDR-240-24
- 48V: TDR-240-482
Specificație tehnică
TDR-240: 240W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| TDR-240-24 | 24V, 0~10A | +/-1% | 100mV | 92% | 63x125.2x113.5mm |
| TDR-240-48 | 48V, 0~5A | +/-1% | 120mV | 92% | 63x125.2x113.5mm |
