- Three-Phase 340~550VAC wide range input (Dual phase operation possible)
- Width only 85.5mm
- Built-in active PFC function compliance to EN61000-3-2
- High efficiency 93% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Optional DC OK relay contact
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
TDR-480
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareTDR-480-24DIN rail power supply 3-phase 480W 24VÎn stocGaranție: 599,60 RON737,51 RONIntră în cont pentru a vedea prețurile TDR-480-24DIN rail power supply 3-phase 480W 24VDisponibilitate:În stocPreț net:599,60 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareTDR-480-48DIN rail power supply 3-phase 480W 48VÎn stocGaranție: 599,60 RON737,51 RONIntră în cont pentru a vedea prețurile TDR-480-48DIN rail power supply 3-phase 480W 48VDisponibilitate:În stocPreț net:599,60 RON
Descriere

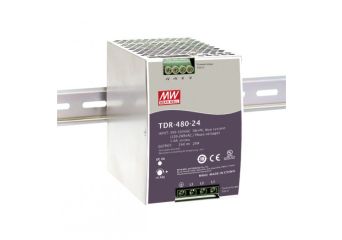

TDR-480 is one economical slim 480W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3ψ 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-480 is designed with metal housing that enhances the uniťs power dissipation. With working efficiency up to 93%, the entire series can operate at the ambient temperature between -20ºC and 70ºC under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) make T DR-480 a very competitive power supply solution for industrial applications.
Available models:
- 24V: TDR-480-24
- 48V: TDR-480-48
Specificație tehnică
TDR-480: 480W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Dimension |
| TDR-480-24 | 24V, 0~20A | +/-1% | 150mV | 92% | 85.5x125.2x128.5mm |
| TDR-480-48 | 48V, 0~10A | +/-1% | 240mV | 92% | 85.5x125.2x128.5mm |
