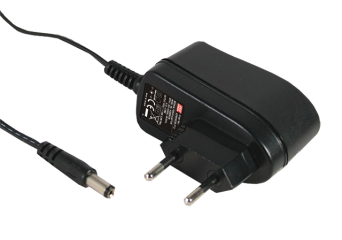

P1J DC adapters
Preț de la 2,60 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
Producător: MEAN WELL
- 2 pole EURO plug , Class II power unit
- Medical safety approved (2 x MOPP) according to EN60601-1/-1-11
- Extremely low leakage current
- Energy efficiency Level VI and meet COC version 5( except 5~9V for Level V)
- -25~+60°C wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 57,20 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareGSM06E05-P1Jwall plug-in power supply EU 6W 5V 1.2AÎn stocGaranție: 57,20 RON70,36 RONIntră în cont pentru a vedea prețurile GSM06E05-P1Jwall plug-in power supply EU 6W 5V 1.2ADisponibilitate:În stocPreț net:57,20 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareGSM06E24-P1Jwall plug-in power supply EU 6W 24V 0.25AÎn stocGaranție: 57,20 RON70,36 RONIntră în cont pentru a vedea prețurile GSM06E24-P1Jwall plug-in power supply EU 6W 24V 0.25ADisponibilitate:În stocPreț net:57,20 RON
Useful products
Descriere
GSM series is a highly reliable, wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current, fitting the medical devices in direct electrical contact with the patients.
With the extreme low no-load power consumption below, GSM series is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM series is approved with the international medical safety certificates.
Available models:
- 5V: GSM06E05-P1J, GSM18E05-P1J, GSM25E05-P1J, GSM36E05-P1J
- 6V: GSM06E06-P1J
- 7.5V: GSM06E07-P1J, GSM18E07-P1J, GSM25E07-P1J, GSM36E07-P1J
- 9V: GSM06E09-P1J, GSM18E09-P1J, GSM25E09-P1J, GSM36E09-P1J
- 12V: GSM06E12-P1J, GSM18E12-P1J, GSM25E12-P1J, GSM36E12-P1J
- 15V: GSM06E15-P1J, GSM18E15-P1J, GSM25E15-P1J, GSM36E15-P1J
- 18V: GSM06E18-P1J, GSM18E18-P1J, GSM25E18-P1J, GSM36E18-P1J
- 24V: GSM06E24-P1J, GSM18E24-P1J, GSM25E24-P1J, GSM36E24-P1J
- 48V: GSM18E48-P1J, GSM25E48-P1J, GSM36E48-P1J
Specificație tehnică
-
GSM06E: 5~6W DETAILS
Model Output Tolerance Ripple & noise Efficiency Plug Dimension GSM06E05-P1J 5V, 0~1.2A +/-5% 50mV 68% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E06-P1J 6V, 0~1A +/-5% 50mV 74% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E07-P1J 7.5V, 0~0.8A +/-5% 80mV 74% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E09-P1J 9V, 0~0.66A +/-5% 80mV 76% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E12-P1J 12V, 0~0.5A +/-5% 80mV 76% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E15-P1J 15V, 0~0.4A +/-5% 120mV 79% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E18-P1J 18V, 0~0.33A +/-5% 150mV 80% 2.1Øx5.5Øx11mm 66x32x42.5mm GSM06E24-P1J 24V, 0~0.25A +/-4% 180mV 82% 2.1Øx5.5Øx11mm 66x32x42.5mm
