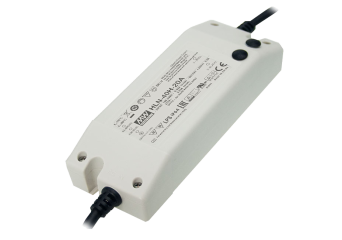

HLN-40H
Power supplies for LED lighting systems with PFC: HLN-40H-12A, HLN-40H-15A, HLN-40H-20A, HLN-40H-24A, HLN-40H-30A, HLN-40H-36A, HLN-40H-42A, HLN-40H-48A, HLN-40H-54A
Producător: MEAN WELL
Producător: MEAN WELL
- supply voltage: 90-305VAC
- built-in dc current limitation
- class II insulation
- built-in active PFC function PF> 0.9
- short-circuit, overvoltage, overcurrent and thermal protection
- cooling with open air circulation
- IP64 housing
- working temperature -40 ~ + 50 ° C
- efficiency up to 91%
- 3in1 1-10V dimming function, PWM, resistor (model B)
- compliance with a number of standards and certificates
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 196,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareHLN-40H-54ALED driver 40W 54V 0.75AOut of stock Garanție: 196,00 RON241,08 RONIntră în cont pentru a vedea prețurile HLN-40H-54ALED driver 40W 54V 0.75ADisponibilitate: Out of stockPreț net:196,00 RON
Descriere
HLP series power supplies have a built-in active PFC function. Their narrow plastic housing with a high class of tightness allows for use in conditions with high humidity and high dustiness. They have the ability to adjust the voltage and output currents using internal potentiometers, or the 3 in 1 dimming function (1-10V, PWM, resistor) in B models. They are intended for powering lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Specificație tehnică
- HLN-40H: Power supplies for LED lighting systems with PFC 40W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Cable length | Dimensions |
| HLN-40H-12 | 12V, 0~3.33A | +/-2.5% | 150mV | 86.5% | 300mm | 161x61.5x35mm |
| HLN-40H-15 | 15V, 0~2.67A | +/-2% | 150mV | 86.5% | 300mm | 161x61.5x35mm |
| HLN-40H-20 | 20V, 0~2A | +/-1% | 150mV | 87.5% | 300mm | 161x61.5x35mm |
| HLN-40H-24 | 24V, 0~1.67A | +/-1% | 150mV | 88% | 300mm | 161x61.5x35mm |
| HLN-40H-30 | 30V, 0~1.34A | +/-1% | 200mV | 88,5% | 300mm | 161x61.5x35mm |
| HLN-40H-36 | 36V, 0~1.12A | +/-1% | 200mV | 88.5% | 300mm | 161x61.5x35mm |
| HLN-40H-42 | 42V, 0~0.96A | +/-1% | 200mV | 88.5% | 300mm | 161x61.5x35mm |
| HLN-40H-48 | 48V, 0~0.84A | +/-1% | 300mV | 89% | 300mm | 161x61.5x35mm |
| HLN-40H-54 | 54V, 0~0.75A | +/-1% | 300mV | 89% | 300mm | 161x61.5x35mm |
