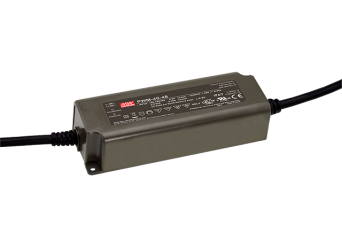

PWM-40
Power supplies for LED lighting systems with dimming PWM function: PWM-40-12, PWM-40-24, PWM-40-36, PWM-40-48,
- wide range of supply voltage: 90 ~ 305VAC, 127 ~ 431VDC
- hermetic plastic housing in accordance with the IP67 standard
- constant output voltage regardless of load
- short-circuit, overload, overvoltage and thermal protection
- no-load power consumption <0.5W
- active PFC system
- class II insulation
- 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- cooling with open air circulation
- working temperature from -40 to + 70 ° C
- compliance with a number of standards and certificates
- efficiency up to 90%
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-40-12LED driver 40W 12V 3.34AÎn stocGaranție: 131,00 RON161,13 RONIntră în cont pentru a vedea prețurile PWM-40-12LED driver 40W 12V 3.34ADisponibilitate:În stocPreț net:131,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-40-24LED driver 40W 24V 1.67AÎn stocGaranție: 131,00 RON161,13 RONIntră în cont pentru a vedea prețurile PWM-40-24LED driver 40W 24V 1.67ADisponibilitate:În stocPreț net:131,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-40-36LED driver 40W 36V 1.12AOut of stock Garanție: 131,00 RON161,13 RONIntră în cont pentru a vedea prețurile PWM-40-36LED driver 40W 36V 1.12ADisponibilitate: Out of stockPreț net:131,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugarePWM-40-48LED driver 40W 48V 0.84AOut of stock Garanție: 131,00 RON161,13 RONIntră în cont pentru a vedea prețurile PWM-40-48LED driver 40W 48V 0.84ADisponibilitate: Out of stockPreț net:131,00 RON
Descriere
The PWM series voltage power supplies, unlike standard power supplies, have a PWM type output signal, which allows them to be used with various types of LED strips, ensuring the appropriate color temperature. These models are characterized by a narrow plastic housing with a high class of tightness, which allows for use in conditions of increased humidity. Wires with a length of 60 cm are led out of the housing. The power supplies provide a constant output voltage regardless of the load. The PWM models also have a dimming function that allows you to adjust the current efficiency with a voltage of 1-10VDC, the width of the pulse filling (PWM), or an external resistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.
Specificație tehnică
- PWM-40 : Power supplies for LED lighting with dimming PWM function SPECIFICATION
| Model | Output | Tolerance | Efficiency | Wire length | Dimensions |
| PWM-40-12 | 12V, 0~3.34A | +/-4% | 86% | 300mm | 150x53x35mm |
| PWM-40-24 | 24V, 0~1.67A | +/-3% | 89% | 300mm | 150x53x35mm |
| PWM-40-36 | 36V, 0~1.12A | +/-2% | 90% | 300mm | 150x53x35mm |
| PWM-40-48 | 48V, 0~0.84A | +/-1% | 90% | 300mm | 150x53x35mm |
