- Wide input voltage range of 90 ~ 305VAC
- Built-in PFC function
- Admissible working temperature: -40 ~ + 80 ° C
- Round housing with IP67 tightness
- In version A: regulation of the output current with a potentiometer
- For AB version: 3 in 1 dimming function (0 ~ 10VDC, PWM, resistance)
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXBG-100-ALED driver 100W 27~56V 0.875~2.78AOut of stock Garanție: 153,90 RON189,30 RONIntră în cont pentru a vedea prețurile XBG-100-ALED driver 100W 27~56V 0.875~2.78ADisponibilitate: Out of stockPreț net:153,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXBG-100-ABLED driver 100W 27~56V 0.875~2.78AOut of stock Garanție: 168,50 RON207,26 RONIntră în cont pentru a vedea prețurile XBG-100-ABLED driver 100W 27~56V 0.875~2.78ADisponibilitate: Out of stockPreț net:168,50 RON
Descriere

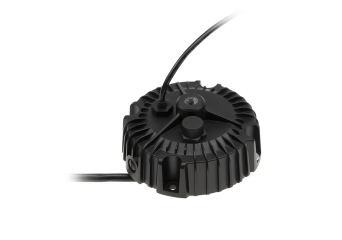

XBG-100 is a constant power LED power supply with a rated power of 100W and an output voltage of up to 56V. The device offers a wide range of input voltage (90 ~ 305VAC) and current up to 2780mA. Thanks to high efficiency up to 92% and low heat losses, the power supply can operate in the temperature range from -40 to + 80 ° C. Thanks to the use of cooling with an open air circulation, the casing has a tightness class of IP67. The XBG-100 version A has the option of adjusting the output current with a potentiometer on the housing. The AB version is equipped with a dimming function with 3 different methods: 0-10VDC signal, PWM signal or resistor.
Application examples:
- High-bay luminaires
- Architectural floodlights
- Lighting of industrial halls
Specificație tehnică
- XBG-100: Constant power LED power supply - DETAILS
| Model | Output | Tolerance | Efficiency | Dimensions |
| XBG-100 | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
| XBG-100-A | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
| XBG-100-AB | 27~56V, 875~2780mA | +/-5% | 92% | 130x56mm |
