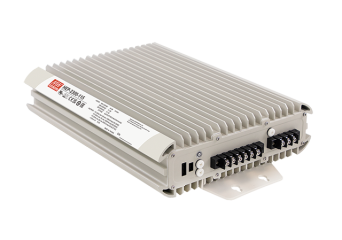

HEP-2300

HEP-2300 is an industrial AC / DC power supply with a power of 2300W and high resistance to harsh operating conditions: moisture, dust, oils and high vibrations. Thanks to the use of high-quality aluminum housing and fanless cooling, the product meets the IP67 tightness class (for models W and H). Despite the use of convection cooling, the acceptable operating temperature range is -40 ~ + 70 ° C. The power supply is available in three versions: with a screw terminal, with IP67 cabling or with IP67 connectors.

The device has built-in 2 and 3-stage charging characteristics programmed for optimal charging of different types of batteries (lead-acid, gel, AGM, lithium-ion). The user also has the option of independently programming his own charging curve. The curve programming is possible thanks to the programmer of the Mean Well SBP-001 chargers and the software from the Mean Well company. In the absence of an external programmer, it is possible to manually select the charging current and voltage using the PMBus interface.

With the built-in standard PMBus communication protocols (optional CANBus), the HEP-2300 series can be seamlessly integrated into a larger system, making it a controllable peripheral that offers many benefits such as energy saving, easy monitoring and fast communication. The case design and firmware functions make HEP-2300 perfectly meet the requirements of digital energy management, electrolysis, firing equipment, charging equipment.
