Producător: MEAN WELL
- wide input voltage range 90-264VAC
- no-load power consumption <0.075W
- compact sizes
- compliant with EU ErP standard
- protections: short-circuit, overvoltage and overload
- operating temperature -20 ~ +70°C
- compliance with many standards and certificates
- 3 years warranty
Prices with discounts and exact stock levels are visible after logging in to the e-shop.
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole Adăugare2-pin EU plug with FG + IEC320-C13 INLETÎn stocGaranție: 21,30 RON26,20 RONIntră în cont pentru a vedea prețurile 2-pin EU plug with FG + IEC320-C13 INLETDisponibilitate:În stocPreț net:21,30 RON
Descriere

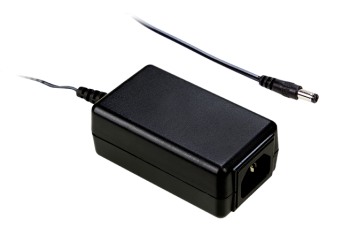

The SGAA15A MEAN WELL power supply has an output power of 15W. In addition, the power supply is compliant with energy efficiency level VI, a wide range of input voltages and a 3-year warranty.
Specificație tehnică
- SGAS15A: 15W desktop power supply (SPECIFICATION)
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Plug | Dimensions |
| SGAS15A05-P1J | 5V, 2.4A | +/-5% | 80mV | 79% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
| SGAS15A09-P1J | 9V, 1.66A | +/-5% | 80mV | 84% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
| SGAS15A12-P1J | 12V, 1.25A | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
| SGAS15A15-P1J | 15V, 1A | +/-3% | 80mV | 85% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
| SGAS15A24-P1J | 24V, 0.625A | +/-2% | 100mV | 86% | 2.1Øx5.5Øx11mm | 85.7x50.9x33.8mm |
