- 3Ø input voltage: 3-wire Δ or 4-wire Y 196 ~ 305 VAC
- parallel operation up to 2x RST-15K
- built-in active PFC function
- high efficiency up to 94.5%
- voltage adjustable from 1 ~ 120% with external voltage
- control of the output voltage with a built-in potentiometer
- built-in remote on / off function
- working temperature -30 ~ + 70 ° C
- compliance with many standards and certificates
- 5-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRST-15K-115switching power supply 15000W 115V 130AOut of stock Garanție: 17.823,50 RON21.922,91 RONIntră în cont pentru a vedea prețurile RST-15K-115switching power supply 15000W 115V 130ADisponibilitate: Out of stockPreț net:17.823,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRST-15K-230switching power supply 15000W 230V 69AOut of stock Garanție: 17.823,50 RON21.922,91 RONIntră în cont pentru a vedea prețurile RST-15K-230switching power supply 15000W 230V 69ADisponibilitate: Out of stockPreț net:17.823,50 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRST-15K-380switching power supply 15000W 380V 45AOut of stock Garanție: 17.823,50 RON21.922,91 RONIntră în cont pentru a vedea prețurile RST-15K-380switching power supply 15000W 380V 45ADisponibilitate: Out of stockPreț net:17.823,50 RON
Descriere

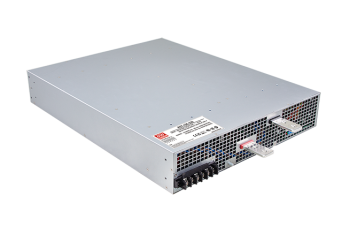

RST-15K is a high-power power supply adapted to be supplied with three-phase voltage (delta or star connection). The output voltage is 115V, 230V, 380V. It is possible to adjust the output voltage with a potentiometer or an external 1-5VD signal. In the RST series, overload protection can be realized as a constant current limit or with a delayed trip after 5 seconds. The models have an active PFC system and an efficiency of up to 95%. The devices can be connected in parallel to increase the power up to 30kW by connecting four RST-15K models.
Specificație tehnică
- RST-15K: Parallel three-phase power supply with high output voltage ~15000W SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| RST-15K-115 | 115V, 0~130A | +/-1% | 1V | 93% |
540x424x83.5mm
|
| RST-15K-230 | 230V, 0~69A | +/-1% | 2V | 94% |
540x424x83.5mm
|
| RST-15K-380 | 380V, 0~45A | +/-1% | 4V | 94.5% |
540x424x83.5mm
|
