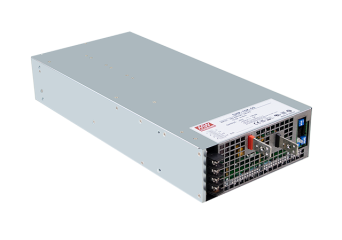

SHP-10K

Parallel three-phase power supply with high output voltage

Producător: MEAN WELL
Producător: MEAN WELL
  • 3Ø input voltage: 3-wire Δ or 4-wire Y 340 ~ 530 VAC
  • parallel operation up to 4x SHP-10K (40kW)
  • built-in active PFC function
  • high efficiency up to 97%
  • 'L' models designed for water cooling
  • built-in CANBus communication protocol
  • voltage adjustable from 50 ~ 120% with external voltage
  • control of the output voltage with a built-in potentiometer
  • built-in remote on / off function
  • working temperature -30 ~ + 70 ° C
  • compliance with many standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 13.367,60 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 8 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The SHP-10K is a high-power three-phase power supply (delta or star connection). The output voltage is 55V, 115V, 230V, 380V. It is possible to adjust the output voltage with a potentiometer or an external 1-5VD signal. The models have an active PFC system and efficiency up to 97%. The devices can be connected in parallel to increase the power to 40kW by connecting four SHP-10K models.

Models in the 'L' version are designed for water cooling with a dedicated cooling attachment.

Specificație tehnică

  • SHP-10K: three-phase power supply with high output voltage 7200~10000W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Dimensions
SHP-10K-55 55V, 0~150A +/-1% 1V 94.5%

SHP-10K: 60x211x83.5mm

SHP-10K-L: 60x216x83.5mm

SHP-10K-115 115V, 0~87A +/-1% 1V 96%

SHP-10K: 60x211x83.5mm

SHP-10K-L: 60x216x83.5mm

SHP-10K-230 230V, 0~46.3A +/-1% 2V 96.5%

SHP-10K: 60x211x83.5mm

SHP-10K-L: 60x216x83.5mm

SHP-10K-380 380V, 0~26.3A +/-1% 4V 96.5%

SHP-10K: 60x211x83.5mm

SHP-10K-L: 60x216x83.5mm
