Producător: MEAN WELL
- input voltage 90-264VAC, 127-370VDC
- two outputs: 12V, 5V or 24V, 5V
- protections: short circuit, overvoltage and overload protection
- regulation of the output voltage in the range of +/- 5%
- cooling with open air circulation
- working temperature from -20 ~ + 60 ° C
- compliance with many standards and certificates
- small size
- 2 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț de la 105,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-65Copen frame power supply 65W 12V, 5VOut of stock Garanție: 105,00 RON129,15 RONIntră în cont pentru a vedea prețurile RPD-65Copen frame power supply 65W 12V, 5VDisponibilitate: Out of stockPreț net:105,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareRPD-65Dopen frame power supply 65W 24V, 5VOut of stock Garanție: 105,00 RON129,15 RONIntră în cont pentru a vedea prețurile RPD-65Dopen frame power supply 65W 24V, 5VDisponibilitate: Out of stockPreț net:105,00 RON
Descriere

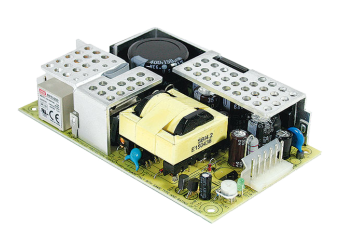

The series of 2,3-output power supplies without housing is intended for use in broadly understood industrial automation, electronics and telecommunications. The lack of an enclosure allows great freedom of installation. Small size, high quality and reliability make the power supplies perfect for installation in a powered device. Led input and output connectors facilitate connection of wires. Optionally, RPD and RPT models are also available in a version with a housing.
Specificație tehnică
- RPD-65: 60W DETAILS
| Model | Output | Tolerance | Ripple & noise | Efficiency | Max power | Dimension |
| RPD-65C | 12V, 0~5.8A 5V, 0~1.5A |
+/-2% +/-5% |
120mV 50mV |
79% | 60W | 127x76x29mm |
| RPD-65D | 24V, 0~2.9A 5V, 0~1.5A |
+/-2% +/-5% |
150mV 50mV |
81% | 60W | 127x76x29mm |
