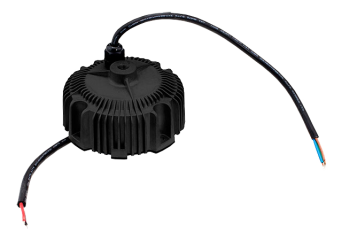

main product photo

HBG-100

Round shape IP67 LED power supplies: HBG-100-24, HBG-100-36, HBG-100-48, HBG-100-60, HBG-100-24A, HBG-100-36A, HBG-100-48A, HBG-100-60A, HBG-100-24B, HBG-100-36B, HBG-100-48B, HBG-100-60B, HBG-100P-36A, HBG-100P-48A, HBG-100P-60A, HBG-100P-36B, HBG-100P-48B, HBG-100P-60B

Producător: MEAN WELL
Producător: MEAN WELL
  • supply voltage: 90-305VAC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • Available version without housing - series "P"
  • built-in active PFC function
  • short-circuit, overload, overvoltage and thermal protection
  • regulation of the output current with a potentiometer in version A
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • Compatibility with DALI in the DA version
  • cooling with open air circulation
  • operating temperature -40 ~ + 60 ° C (-40 ~ + 70 ° C HBD-240)
  • efficiency up to 93.5%
  • compliance with a number of standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 159,60 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 29 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
HBG-100

HBG-100

Modele

Descriere

The HBG series is a high-performance LED power supply specially designed for mounting with highbay or lowbay luminaires.This allows for a round shape that allows for easy installation and a perfect match to the luminaires. The power supplies are completely filled with glue inside, and their aluminum housing can be tightly connected to the heat sink. Devices and provide excellent heat dissipation ability. As long as the temperature at the top of the housing can be controlled below 70 ° C, the life of the power supply is guaranteed for up to 40,000 hours. HBG power supplies are available in three versions, i.e. without the designation, A, B (with leads out) or version D (with a built-in dimming timer - optional). The B models have a 3 in 1 dimming function. The entire series has a built-in active PFC function. They are intended for use in lighting industrial halls, warehouses, shops, etc.

Specificație tehnică

  • HBG-100: Round shape IP67 LED power supplies 96~97W SPECIFICATION
Model Output Tolerance Efficiency Dimensions
HBG-100-24 24V, 0~4.0A +/-2% 90.5% 130x66.5mm
HBG-100-36 36V, 0~2.7A +/-2% 91% 130x66.5mm
HBG-100-48 48V, 0~2A +/-2% 91% 130x66.5mm
HBG-100-60 60V, 0~1.6A +/-2% 91.5% 130x66.5mm

Descarca documentatie
