main product photo

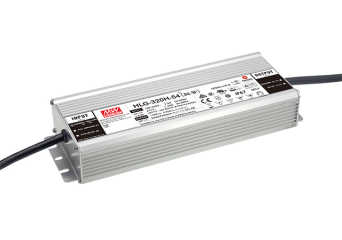

HLG-320h

Power supplies for LED lighting systems with a metal housing, waterproof IP67 / IP65: HLG-320-12, HLG-320-15, HLG-320-20, HLG-320-24, HLG-320-30, HLG-320-36, HLG-320-42, HLG-320-48, HLG-320-54, HLG-320-12A, HLG-320-15A, HLG-320-20A, HLG-320-24A, HLG-320-30A, HLG-320-36A, HLG-320-42A, HLG-320-48A, HLG-320-54A, HLG-320-12B, HLG-320-15B, HLG-320-20B, HLG-320-24B, HLG-320-30B, HLG-320-36B, HLG-320-42B, HLG-320-48B, HLG-320-54B

Producător: MEAN WELL
Producător: MEAN WELL
  • supply voltage: 90-305VAC; 127-431VDC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • built-in active PFC function
  • 4KV surge immunity in accordance with IEC61000-4-5
  • short-circuit, overload, overvoltage and thermal protection
  • current and output voltage regulation in A models
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • current and voltage regulation + 3in1 dimming function on AB models
  • cooling with open air circulation
  • working temperature -40 ~ + 90 ° C
  • efficiency up to 95%
  • compliance with a number of standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 450,80 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 36 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
HLG-320h

HLG-320h

Modele

Descriere

The HLG series power supplies are characterized by a sealed metal housing, so they can also be used outdoors. The HLG models are available in four versions, i.e. without the designation, A, B (with the cable outlet) or the C version (with an input-output connector for connecting cables). The models have the option of adjusting the voltage and output currents without opening the housing (through holes with plugs in versions A and C, or by connecting an external resistor, PWM signal or 1 ~ 10VDC voltage in version B). The entire series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.

Specificație tehnică

  • LG-320H: Power supplies for LED lighting systems 264~321.6W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Cable length Dimensions
HLG-320H-12 12V, 0~22.0A +/-3% 150mV 91% 300mm 252x90x42mm
HLG-320H-15 15V, 0~19A +/-2% 150mV 92.5% 300mm 252x90x42mm
HLG-320H-20 20V, 0~15A +/-1.5% 150mV 93.5% 300mm 252x90x42mm
HLG-320H-24 24V, 0~13.34A +/-1% 150mV 94% 300mm 252x90x42mm
HLG-320H-30 30V, 0~10.7A +/-1% 200mV 94% 300mm 252x90x42mm
HLG-320H-36 36V, 0~8.9A +/-1% 250mV 94.5% 300mm 252x90x42mm
HLG-320H-42 42V, 0~7.65A +/-1% 250mV 95% 300mm 252x90x42mm
HLG-320H-48 48V, 0~6.7A +/-1% 250mV 95% 300mm 252x90x42mm
HLG-320H-54 54V, 0~5.95A +/-1% 350mV 95% 300mm 252x90x42mm

Descarca documentatie
