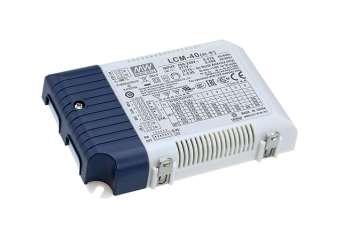

LCM-40
Constant current power supplies with current regulation and DALI interface: LCM-40, LCM-40DA, LCM-40DA2
- output current set with a switch
- supply voltage: 180-295VAC (180-277VAC LCM-25 / 25DA)
- fully insulated plastic housing
- short-circuit and thermal protection (over voltage 40W and 60W models)
- active PFC system
- class II insulation
- working temperature -30 ~ + 60 ° C
- IP20
- additional auxiliary output 12V 50mA (40W and 60W models)
- external NTC temperature compensation function
- no-load power consumption <1W (60W models)
- no-load power consumption <0.5W (25W and 40W models)
- synchronization function up to 10 units
- 0 ~ 10VDC and PWM and 0-100KΩ dimming function (LCM-25/40/60)
- built-in DALI LCM-25DA / 40DA / 60DA interface)
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-40LED driver 40W 2~100V 0.35~1.05AÎn livrare Garanție: 150,80 RON185,48 RONIntră în cont pentru a vedea prețurile LCM-40LED driver 40W 2~100V 0.35~1.05ADisponibilitate: În livrarePreț net:150,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-40DALED driver 40W 2~100V 0.35~1.05AÎn stocGaranție: 190,80 RON234,68 RONIntră în cont pentru a vedea prețurile LCM-40DALED driver 40W 2~100V 0.35~1.05ADisponibilitate:În stocPreț net:190,80 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-40DA2LED driver 40W 2~100V 0.35~1.05A DALI2În stocGaranție: 182,00 RON223,86 RONIntră în cont pentru a vedea prețurile LCM-40DA2LED driver 40W 2~100V 0.35~1.05A DALI2Disponibilitate:În stocPreț net:182,00 RON
Descriere
LCM series power supplies have the option of setting the output current by means of a DIP switch. Models are dimmable from 0 ~ 10Vdc or via PWM. The LCM-25DA, LCM-40DA and LCM-60DA models have a built-in DALI interface and a push-button dimming function. Additionally, they are equipped with an auxiliary output of 12V, 50mA and an output for connecting a thermistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Specificație tehnică
- LCM-40 / LCM-40DA power supplies 42W SPECIFICATION / SPECIFICATION
Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
LCM-40/LCM-40DA | 350mA, 2~100V 500mA, 2~80V 600mA, 2~67V 700mA, 2~57V (fab) 900mA, 2~45V 1050mA, 2~40V |
+/-5 | 700mV | 90,5% | 123.5x81.5x23mm |
