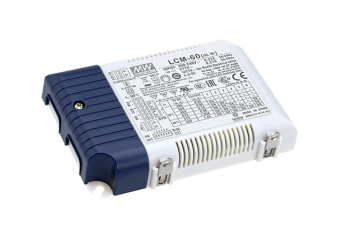

LCM-60
Constant current power supplies with current regulation and DALI interface: LCM-60, LCM-60DA
- output current set with a switch
- supply voltage: 180-295VAC (180-277VAC LCM-25 / 25DA)
- fully insulated plastic housing
- short-circuit and thermal protection (over voltage 40W and 60W models)
- active PFC system
- class II insulation
- working temperature -30 ~ + 60 ° C
- IP20
- additional auxiliary output 12V 50mA (40W and 60W models)
- external NTC temperature compensation function
- no-load power consumption <1W (60W models)
- no-load power consumption <0.5W (25W and 40W models)
- synchronization function up to 10 units
- 0 ~ 10VDC and PWM and 0-100KΩ dimming function (LCM-25/40/60)
- built-in DALI LCM-25DA / 40DA / 60DA interface)
- compliance with a number of standards and certificates
- cooling in open air circulation
- 3-year warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-60LED driver 60W 2~90V 0.5~1.4AÎn stocGaranție: 157,60 RON193,85 RONIntră în cont pentru a vedea prețurile LCM-60LED driver 60W 2~90V 0.5~1.4ADisponibilitate:În stocPreț net:157,60 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-60DALED driver 60W 2~90V 0.5~1.4AÎn stocGaranție: 196,00 RON241,08 RONIntră în cont pentru a vedea prețurile LCM-60DALED driver 60W 2~90V 0.5~1.4ADisponibilitate:În stocPreț net:196,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLCM-60DA2LED driver 60W 2~90V 0.5~1.4A DALI2În stocGaranție: 187,20 RON230,26 RONIntră în cont pentru a vedea prețurile LCM-60DA2LED driver 60W 2~90V 0.5~1.4A DALI2Disponibilitate:În stocPreț net:187,20 RON
Descriere
LCM series power supplies have the option of setting the output current by means of a DIP switch. Models are dimmable from 0 ~ 10Vdc or via PWM. The LCM-25DA, LCM-40DA and LCM-60DA models have a built-in DALI interface and a push-button dimming function. Additionally, they are equipped with an auxiliary output of 12V, 50mA and an output for connecting a thermistor. They are designed to power a wide range of devices, including lighting and decorative LED systems, including LEDs, strips, modules, panels, halogen LED bulbs, etc.
Specificație tehnică
- LCM-60 / LCM-60DA power supplies 60.3W SPECIFICATION / SPECIFICATION
| Model | Output | Tolerance | Ripple&Noise | Efficiency | Dimensions |
| LCM-60/LCM-60DA |
500mA, 2~90V |
+/-5 | 700mV | 91,5% | 123.5x81.5x23mm |
