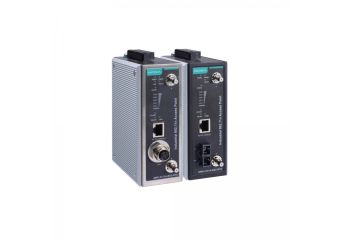

AWK-3131A-M12-RTG
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareAWK-3131A-M12-RTG-EU-CT-TRail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°C, coatingOut of stock Garanție: 8.290,00 RON10.196,70 RONIntră în cont pentru a vedea prețurile AWK-3131A-M12-RTG-EU-CT-TRail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°C, coatingDisponibilitate: Out of stockPreț net:8.290,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareAWK-3131A-M12-RTG-EU-TRail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°COut of stock Garanție: 7.165,00 RON8.812,95 RONIntră în cont pentru a vedea prețurile AWK-3131A-M12-RTG-EU-TRail Onboard In-door Single Radio, 802.11n Access Point/Client, M12/QMA, EU band, IP30, -40 to 75°CDisponibilitate: Out of stockPreț net:7.165,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareAWK-3131A-SSC-RTG-EU-CT-TRail Trackside In-door Single Radio, 802.11n Access Point/Client, M12/SC, EU band, IP30, -40 to 75°C, coatingOut of stock Garanție: 9.335,00 RON11.482,05 RONIntră în cont pentru a vedea prețurile AWK-3131A-SSC-RTG-EU-CT-TRail Trackside In-door Single Radio, 802.11n Access Point/Client, M12/SC, EU band, IP30, -40 to 75°C, coatingDisponibilitate: Out of stockPreț net:9.335,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareAWK-3131A-SSC-RTG-EU-TRail Trackside In-door Single Radio, 802.11n Access Point/Client, M12/SC, EU band, IP30, -40 to 75°COut of stock Garanție: 8.180,00 RON10.061,40 RONIntră în cont pentru a vedea prețurile AWK-3131A-SSC-RTG-EU-TRail Trackside In-door Single Radio, 802.11n Access Point/Client, M12/SC, EU band, IP30, -40 to 75°CDisponibilitate: Out of stockPreț net:8.180,00 RON
Descriere
The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.
Advanced Security
- 64-bit and 128-bit WEP (Wired Equivalent Privacy)
- Enable/disable SSID broadcasts
- WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support
- IEEE802.1X/RADIUS support
- Powerful filters for access control
Designed for Train-to-Ground Applications
- Client-based Turbo Roaming handover time < 150 ms @ 3 channel with WPA2
- Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) < 50 ms @ 3 channels with WPA2
- Multiple roaming parameters for different installation structures and antenna types
Specificație tehnică
- WLAN Interface
| WLAN Standards | 802.11a/b/g/n 802.11i Wireless Security |
| Modulation Type | DSSS OFDM 802.11b: CCK @ 11/5.5 Mbps 802.11b: DQPSK @ 2 Mbps 802.11b: DBPSK @ 1 Mbps 802.11a/g: 64QAM @ 54/48 Mbps 802.11a/g: 16QAM @ 36/24 Mbps 802.11a/g: QPSK @ 18/12 Mbps 802.11a/g: BPSK @ 9/6 Mbps 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps |
| Frequency Band for US (20 MHz operating channels) | 2.412 to 2.462 GHz (11 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640 GHz * 5.745 to 5.825 GHz (5 channels) |
| Frequency Band for EU (20 MHz operating channels) | 2.412 to 2.472 GHz (13 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (11 channels) * |
| Frequency Band for JP (20 MHz operating channels) | 2.412 to 2.484 GHz (14 channels) 5.180 to 5.240 GHz (4 channels) 5.260 to 5.320 GHz (4 channels) * 5.500 to 5.700 GHz (11 channels) * |
| * DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service. | |
| Wireless Security | SSID broadcast enable/disable WEP encryption (64-bit and 128-bit) WPA/WPA2-Personal WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES) |
| Transmission Rate | 802.11b: 1 to 11 Mbps 802.11a/g: 6 to 54 Mbps 802.11n: 6.5 to 300 Mbps |
| Transmitter Power for 802.11a | 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 20±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (5 GHz) | 23±1.5 dBm @ MCS0 20 MHz 20±1.5 dBm @ MCS1 20 MHz 20±1.5 dBm @ MCS2 20 MHz 20±1.5 dBm @ MCS3 20 MHz 19±1.5 dBm @ MCS4 20 MHz 18±1.5 dBm @ MCS5 20 MHz 18±1.5 dBm @ MCS6 20 MHz 18±1.5 dBm @ MCS7 20 MHz 23±1.5 dBm @ MCS8 20 MHz 20±1.5 dBm @ MCS9 20 MHz 20±1.5 dBm @ MCS10 20 MHz 20±1.5 dBm @ MCS11 20 MHz 19±1.5 dBm @ MCS12 20 MHz 19±1.5 dBm @ MCS13 20 MHz 18±1.5 dBm @ MCS14 20 MHz 18±1.5 dBm @ MCS15 20 MHz 23±1.5 dBm @ MCS0 40 MHz 20±1.5 dBm @ MCS1 40 MHz 20±1.5 dBm @ MCS2 40 MHz 20±1.5 dBm @ MCS3 40 MHz 19±1.5 dBm @ MCS4 40 MHz 18±1.5 dBm @ MCS5 40 MHz 18±1.5 dBm @ MCS6 40 MHz 18±1.5 dBm @ MCS7 40 MHz 23±1.5 dBm @ MCS8 40 MHz 20±1.5 dBm @ MCS9 40 MHz 20±1.5 dBm @ MCS10 40 MHz 20±1.5 dBm @ MCS11 40 MHz 19±1.5 dBm @ MCS12 40 MHz 19±1.5 dBm @ MCS13 40 MHz 18±1.5 dBm @ MCS14 40 MHz 18±1.5 dBm @ MCS15 40 MHz |
| Transmitter Power for 802.11b | 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g | 23±1.5 dBm @ 6 to 24 Mbps 21±1.5 dBm @ 36 Mbps 19±1.5 dBm @ 48 Mbps 18±1.5 dBm @ 54 Mbps |
| Transmitter Power for 802.11n (2.4 GHz) | 23±1.5 dBm @ MCS0 20 MHz 21±1.5 dBm @ MCS1 20 MHz 21±1.5 dBm @ MCS2 20 MHz 21±1.5 dBm @ MCS3 20 MHz 20±1.5 dBm @ MCS4 20 MHz 19±1.5 dBm @ MCS5 20 MHz 18±1.5 dBm @ MCS6 20 MHz 18±1.5 dBm @ MCS7 20 MHz 23±1.5 dBm @ MCS8 20 MHz 21±1.5 dBm @ MCS9 20 MHz 21±1.5 dBm @ MCS10 20 MHz 21±1.5 dBm @ MCS11 20 MHz 20±1.5 dBm @ MCS12 20 MHz 19±1.5 dBm @ MCS13 20 MHz 18±1.5 dBm @ MCS14 20 MHz 18±1.5 dBm @ MCS15 20 MHz 23±1.5 dBm @ MCS0 40 MHz 20±1.5 dBm @ MCS1 40 MHz 20±1.5 dBm @ MCS2 40 MHz 20±1.5 dBm @ MCS3 40 MHz 19±1.5 dBm @ MCS4 40 MHz 19±1.5 dBm @ MCS5 40 MHz 18±1.5 dBm @ MCS6 40 MHz 17±1.5 dBm @ MCS7 40 MHz 23±1.5 dBm @ MCS8 40 MHz 20±1.5 dBm @ MCS9 40 MHz 20±1.5 dBm @ MCS10 40 MHz 20±1.5 dBm @ MCS11 40 MHz 20±1.5 dBm @ MCS12 40 MHz 19±1.5 dBm @ MCS13 40 MHz 18±1.5 dBm @ MCS14 40 MHz 17±1.5 dBm @ MCS15 40 MHz |
| Receiver Sensitivity for 802.11a (measured at 5.680 GHz) | Typ. -90 @ 6 Mbps Typ. -88 @ 9 Mbps Typ. -88 @ 12 Mbps Typ. -85 @ 18 Mbps Typ. -81 @ 24 Mbps Typ. -78 @ 36 Mbps Typ. -74 @ 48 Mbps Typ. -74 @ 54 Mbps Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. |
| Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz) | Typ. -88 dBm @ MCS0 20 MHz Typ. -85 dBm @ MCS1 20 MHz Typ. -82 dBm @ MCS2 20 MHz Typ. -79 dBm @ MCS3 20 MHz Typ. -76 dBm @ MCS4 20 MHz Typ. -71 dBm @ MCS5 20 MHz Typ. -70 dBm @ MCS6 20 MHz Typ. -69 dBm @ MCS7 20 MHz Typ. -95 dBm @ MCS8 20 MHz Typ. -91 dBm @ MCS9 20 MHz Typ. -87 dBm @ MCS10 20 MHz Typ. -80 dBm @ MCS11 20 MHz Typ. -78 dBm @ MCS12 20 MHz Typ. -74 dBm @ MCS13 20 MHz Typ. -72 dBm @ MCS14 20 MHz Typ. -71 dBm @ MCS15 20 MHz Typ. -84 dBm @ MCS0 40 MHz Typ. -81 dBm @ MCS1 40 MHz Typ. -77 dBm @ MCS2 40 MHz Typ. -75 dBm @ MCS3 40 MHz Typ. -71 dBm @ MCS4 40 MHz Typ. -67 dBm @ MCS5 40 MHz Typ. -64 dBm @ MCS6 40 MHz Typ. -63 dBm @ MCS7 40 MHz Typ. -90 dBm @ MCS8 40 MHz Typ. -85 dBm @ MCS9 40 MHz Typ. -82 dBm @ MCS10 40 MHz Typ. -81 dBm @ MCS11 40 MHz Typ. -77 dBm @ MCS12 40 MHz Typ. -73 dBm @ MCS13 40 MHz Typ. -71 dBm @ MCS14 40 MHz Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications. Typ. -68 dBm @ MCS15 40 MHz |
| Receiver Sensitivity for 802.11b (measured at 2.437 GHz) | Typ. -93 dBm @ 1 Mbps Typ. -93 dBm @ 2 Mbps Typ. -93 dBm @ 5.5 Mbps Typ. -88 dBm @ 11 Mbps |
| Receiver Sensitivity for 802.11g (measured at 2.437 GHz) | Typ. -88 dBm @ 6 Mbps Typ. -86 dBm @ 9 Mbps Typ. -85 dBm @ 12 Mbps Typ. -85 dBm @ 18 Mbps Typ. -85 dBm @ 24 Mbps Typ. -82 dBm @ 36 Mbps Typ. -78 dBm @ 48 Mbps Typ. -74 dBm @ 54 Mbps |
| Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz) | Typ. -89 dBm @ MCS0 20 MHz Typ. -85 dBm @ MCS1 20 MHz Typ. -85 dBm @ MCS2 20 MHz Typ. -82 dBm @ MCS3 20 MHz Typ. -78 dBm @ MCS4 20 MHz Typ. -74 dBm @ MCS5 20 MHz Typ. -72 dBm @ MCS6 20 MHz Typ. -70 dBm @ MCS7 20 MHz Typ. -95 dBm @ MCS8 20 MHz Typ. -90 dBm @ MCS9 20 MHz Typ. -87 dBm @ MCS10 20 MHz Typ. -83 dBm @ MCS11 20 MHz Typ. -80 dBm @ MCS12 20 MHz Typ. -74 dBm @ MCS13 20 MHz Typ. -71 dBm @ MCS14 20 MHz Typ. -69 dBm @ MCS15 20 MHz Typ. -87 dBm @ MCS0 40 MHz Typ. -83 dBm @ MCS1 40 MHz Typ. -83 dBm @ MCS2 40 MHz Typ. -80 dBm @ MCS3 40 MHz Typ. -76 dBm @ MCS4 40 MHz Typ. -73 dBm @ MCS5 40 MHz Typ. -69 dBm @ MCS6 40 MHz Typ. -67 dBm @ MCS7 40 MHz Typ. -93 dBm @ MCS8 40 MHz Typ. -88 dBm @ MCS9 40 MHz Typ. -85 dBm @ MCS10 40 MHz Typ. -82 dBm @ MCS11 40 MHz Typ. -78 dBm @ MCS12 40 MHz Typ. -73 dBm @ MCS13 40 MHz Typ. -69 dBm @ MCS14 40 MHz Typ. -67 dBm @ MCS15 40 MHz |
| WLAN Operation Mode | Access point, Client, Client-Router, Sniffer |
| Antenna Connectors | QMA |
- Ethernet Interface
| PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) | 1, AWK-3131A-M12-RTG only |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3af for PoE IEEE 802.1Q for VLAN Tagging |
| 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) | 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only) |
| 100BaseFX Ports (single-mode SC connector) | 1, AWK-3131A-SSC-RTG only |
- Ethernet Software Features
| Management | General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCPAP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w) |
| Security | RADIUS |
- Firewall
| Filter | MAC/IP Protocol/Port-based |
- Serial Interface
| Console Port | RS-232 (RJ45-type) |
- LED Interface
| LED Indicators | PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only) *PoE is only available for the AWK-3131A-M12-RTGInput/Output Interface |
| Digital Inputs | 2 +13 to +30 V for state 1 +3 to -30 V for state 0 Max. input current: 8 mA |
| Alarm Contact Channels | Relay output with current carrying capacity of 1 A @ 24 VDC |
| Buttons | Reset button |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in) |
| Weight | 850 g (1.87 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Power Parameters
| Input Current | AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC |
| Input Voltage | 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet |
| Power Connector | 1 removable 10-contact terminal block(s) |
| Power Consumption | AWK-3131A-M12-RTG: Maximum 10.5 W AWK-3131A-SSC-RTG: Maximum 13 W |
| Reverse Polarity Protection | Supported |
- Environmental Limits
| Operating Temperature | Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 61000-6-2/-6-4 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 |
| Railway | EN 50155, EN 50121-4 |
| Railway Fire Protection | EN 45545-2 |
| Radio | EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA |
| Safety | UL 60950-1, IEC 60950-1, EN 60950-1 (LVD) |
- MTBF
| Time | AWK-3131A-M12-RTG: 552,454 hrs AWK-3131A-SSC-RTG: 528,478 hrs |
| Standards | Telcordia SR332 |
Descarca documentatie
