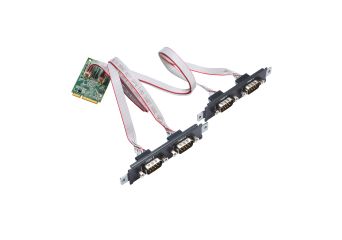

CP-104N

4-portowe karty RS-232 Mini PCI Express

Producător: MOXA

Mini PCIe interface support
921.6 kbps maximum baudrate for fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Drivers provided for a broad selection of operating systems, including Windows and Linux

Preț de la 1.205,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

CP-104N

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
CP-104N-T 4-port RS-232 Mini PCI Express serial board, -40 to 85°C operating temperature	Out of stock	Garanție:		1.205,00 RON 1.482,15 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

CP-104N-T

4-port RS-232 Mini PCI Express serial board, -40 to 85°C operating temperature

Disponibilitate: Out of stock

Preț net:

1.205,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
CP-104N-I-T 4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40 to 85°C operating temperature	Out of stock	Garanție:		2.180,00 RON 2.681,40 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

CP-104N-I-T

4-port RS-232 Mini PCI Express serial board with 2.5 kV capacitive isolation,-40 to 85°C operating temperature

Disponibilitate: Out of stock

Preț net:

2.180,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Introduction

The CP-104N is a multiport serial board designed for industrial automation system and industrial PC manufacturers. It is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.

The CP-104N is a top choice of industrial automation engineers and system integrators and support Windows and Linux operating systems. In addition, the four RS-232 serial port support a fast 921.6 kbps baudrate. The CP-104N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. It also provides 1 kV line-to-line surge protection 2.5 kV isolation (for the I model), ensuring compatibility in a wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market

Moxa's new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes isolated and non-isolated RS-232/422/485 communication cards for various applications.

The serial boards feature high performance 16C950 compatible UARTs and are available in 4-port and 2-port versions compatible with all popular operating systems. They support date rates of up to 921.6 kbps and have 128-byte transmit and receive FIFOs. The serial boards can operate in the -40 to 85C temperature range. Door backets are included in the package for all models, enabling the installation of the serial boards in a Moxa IPC expansion slot.

Specificație tehnică

Serial Interface

Comm. Controller	16C550C compatible
Bus	Mini PCI Express
Connector	DB9 male
FIFO	128 bytes
No. of Ports	4
Serial Standards	RS-232
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Isolation	2.5 kV (I models)

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Serial Software Features

Windows Drivers	Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
Linux Drivers	Linux kernel 4.x, Linux kernel 5.x

Power Parameters

Input Current

CP-104N-T: 365 mA @ 3.3 VDC CP-104N-I-T: 615 mA @ 3.3 VDC

Physical Characteristics

Dimensions

30 x 50.95 mm (1.18 x 2 in)

Environmental Limits

Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature (package included)	-20 to 85°C (-4 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
