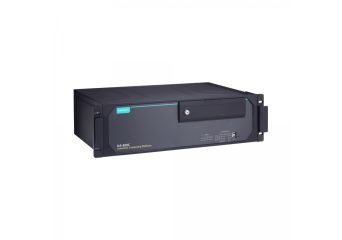

DA-820C
Intel® 7th Gen Xeon® and Core™ CPU, IEC-61850, 3U rackmount computer with PRP/HSR card support
Producător: MOXA
Producător: MOXA
- IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
- EN 50121-4 compliant for railway wayside applications
- 7th Generation Intel® Xeon® and Core™ Processor
- 2 built-in SODIMM ECC DDR4 memory slots; up to 64 GB total capacity
- 4 SSD slots, supports Intel® RST RAID 0/1/5/10
- Highly reliable design, supporting dual power and PRP/HSR technology (with PRP/HSR expansion module)
- 1 PCIe x16, 1 PCIe x4, 2 PCIe x1, and 1 PCI slots for expansion modules
- Redundant power supply (100 to 240 VAC/VDC)
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL3-H-Tx86 3U Intel Core i3-7102E CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL3-H-Tx86 3U Intel Core i3-7102E CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL3-HH-Tx86 3U Intel Core i3-7102E CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL3-HH-Tx86 3U Intel Core i3-7102E CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL5-H-Tx86 3U Intel Core i5-7442EQ CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL5-H-Tx86 3U Intel Core i5-7442EQ CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL5-HH-Tx86 3U Intel Core i5-7442EQ CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL5-HH-Tx86 3U Intel Core i5-7442EQ CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL7-Hx86 3U Intel Core i7-7820EQ CPU, single 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL7-Hx86 3U Intel Core i7-7820EQ CPU, single 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KL7-HHx86 3U Intel Core i7-7820EQ CPU, dual 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KL7-HHx86 3U Intel Core i7-7820EQ CPU, dual 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KLXL-H-Tx86 3U Intel Core Xeon E3-1505L v6 CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KLXL-H-Tx86 3U Intel Core Xeon E3-1505L v6 CPU, single 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KLXL-HH-Tx86 3U Intel Core Xeon E3-1505L v6 CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KLXL-HH-Tx86 3U Intel Core Xeon E3-1505L v6 CPU, dual 100 to 240 VAC/VDC, -40 to 70°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KLXM-Hx86 3U Intel Core Xeon E3-1505M v6 CPU, single 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSOut of stock Garanție: DA-820C-KLXM-Hx86 3U Intel Core Xeon E3-1505M v6 CPU, single 100 to 240 VAC/VDC, -25 to 55°C w/o RAM/SSD/OSDisponibilitate: Out of stock- -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-820C-KLXM-HHCore i7-6600U, 2.6 GHz, Dual Core CPU, with 8G mSATA, 4G RAM and Linux Debian 8 64 bit, dual power, -25 to 55°C temp, IEC 61850-3 compliant.Out of stock Garanție: DA-820C-KLXM-HHCore i7-6600U, 2.6 GHz, Dual Core CPU, with 8G mSATA, 4G RAM and Linux Debian 8 64 bit, dual power, -25 to 55°C temp, IEC 61850-3 compliant.Disponibilitate: Out of stock-
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDA-PRP-HSR-I2102-port RJ45/SFP Giga LAN PRP/HSR module for DA-820COut of stock Garanție: 9.400,00 RON11.562,00 RONIntră în cont pentru a vedea prețurile DA-PRP-HSR-I2102-port RJ45/SFP Giga LAN PRP/HSR module for DA-820CDisponibilitate: Out of stockPreț net:9.400,00 RON
Descriere
The DA-820C Series is a high-performance 3U rackmount industrial computer built around a 7th generation Intel® Core™ i3, i5, i7 or Intel® Xeon® processor. The computer comes with 3 display ports (HDMI x 2, VGA x 1), 6 USB ports, 4 gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, and 2 DO ports. The DA-820C is also equipped with 4 hot swappable 2.5” HDD/SSD slots that support Intel® RST RAID 0/1/5/10 functionality.
The DA-820C complies with IEC-61850-3 and IEEE 1613 standards to deliver stable and reliable system operation for power applications. The computer also complies with the IEC 60255 standards, which cover the protection of electrical relays in a smart substation. IEC 60255 is one of the most widely used standards for testing relays and protection equipment, and compliance with the standard ensures that the DA-820C will work reliably and seamlessly with IEDs as part of a robust substation automation system.
EN 50121-4 compliance confirms that the DA-820C can deliver stable and reliable system operations in rail wayside applications, such as station SCADA systems, wayside disaster prevention, traction power, and signaling and safety systems to provide an integrated view of your smart rail setup.
The robust, rack-mountable design provides the hardened protection needed for applications in various industrial environments.
Proactive Monitoring Function
Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.
Specificație tehnică
- Computer
| CPU | Intel® Xeon® Processor E3-1505M v6 (8M Cache, 3.00 GHz) Intel® Xeon® Processor E3-1505L v6 (8M Cache, 2.20 GHz) Intel® Core™ i7-7820EQ Processor (8M Cache, up to 3.70 GHz) Intel® Core™ i5-7442EQ Processor (6M Cache, up to 2.90 GHz) Intel® Core™ i3-7102E Processor (3M Cache, 2.10 GHz) |
| System Memory Slot | SODIMM DDR4 slot x 2 |
| DRAM | 64 GB max. capacity (SODIMM x 2, each supporting 2400 MHz and 32 GB maximum per module) ECC RAM only supports i3 CPU and Xeon CPU models |
| Graphics Controller | Intel® Xeon® E3-1505MV6: Intel® HD Graphics P630 Intel® Xeon® E3-1505LV6: Intel® HD Graphics P630 Intel® Core™ i7-7820EQ: Intel® HD Graphics 630 Intel® Core™ i5-7442EQ: Intel® HD Graphics 630 Intel® Core™ i3-7102E: Intel® HD Graphics 630 |
| Storage Slot | 2.5-inch HDD/SSD slots x 4 mSATA slots x 1, internal mini-PCIe socket |
| Supported OS | Windows 10 Pro 64-bit Windows 10 Embedded IoT Ent 2019 LTSC 64-bit Linux Debian 9 Note: OS available by CTOS |
| Supported Driver | Windows Server 2019 Windows Server 2016 |
- Computer Interface
| Video Output | HDMI x 2, HDMI connector (type A) VGA x 1, 15-pin D-sub connector (female) |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| USB 2.0 | USB 2.0 hosts x 3, type-A connectors 2 ports on the front panel, 1 port inside the computer |
| USB 3.0 | USB 3.0 hosts x 3, type-A connectors 3 ports on the rear panel |
| Expansion Slots | PCIe x16 slot x 1 PCIe x4 slots x 1 PCIe x1 slots x 2 PCI slots x 1 |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 |
| TPM | TPM v2.0 |
| Digital Input | DIs x 6 |
| Digital Output | DOs x 2 |
- LED Indicators
| System | Power x 1 Storage x 1 Programmable x 8 |
| Serial | 2 per port (Tx, Rx) |
| LAN | 8 per port (10/100/1000 Mbps) |
- Serial Interface
| Baudrate | 300 bps to 115.2 kbps |
| Connector | DB9 male |
| ESD | 8 kV (level 4) |
| Isolation | 2 kV |
| Serial Standards | RS-232/422/485 |
| Surge | 2 kV |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Digital Inputs
| Digital Input Channels | DIs x 6 |
| Voltage | 0 to 30 VDC at 25 Hz |
| Wet Contact (DI to COM) | On: 10 to 30 VDC |
- Digital Outputs
| Digital Output Channels | DOs x 2 |
| Current Rating | Max. 200 mA per channel |
| Voltage | 24 to 30 VDC |
| I/O Type | Sink |
- Power Parameters
| Power Button | Reset button (front panel) ON/OFF (rear panel) |
| Power Consumption | 100 W (max.) |
- Physical Characteristics
| Housing | Metal |
| Dimensions (without ears) | 440 x 132.8 x 281.4 mm (17.3 x 5.2 x 11.1 in) |
| Weight | 14,000 g (31.11 lb) |
| Installation | 19-inch rack mounting |
- Environmental Limits
| Operating Temperature | Standard Models: -25 to 55°C (-13 to 131°F) Wide Temp. Models: -40 to 70°C (-40 to 158°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| EMC | EN 61000-6-2/-6-4, EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8: 20 A/m IEC 61000-4-11 |
| Power Substation | IEC 61850-3, IEEE 1613 |
| Protection Relay | IEC 60255 |
| Safety | IEC 60950-1, IEC 62368-1, UL 62368-1 |
| Shock | IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2 |
- Declaration
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 325,730 hrs |
| Standards | Telcordia SR332 |
