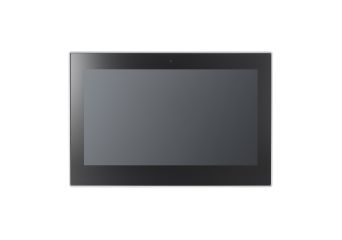

EXPC-F2150W

15.6-inch flat-panel fanless industrial computers with Zone-2 certifications for hazardous outdoor locations

Producător: MOXA

15.6 inch 16:9 display
High-performance Tiger Lake Intel® Core™ i7/ Core™ i5/Core™ i3 or Intel® Celeron® processor
Built-in light sensor for auto brightness control
1200-nit sunlight-readable anti-glare display
Optical bonding of the display for deploying in harsh environments
Fanless thermal design for efficient heat dissipation in high-temperature environments
UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 compliant
Front IP66 and rear IP42 certified
-40 to 70°C operating temperature range
Options for 5G and Wi-Fi 6 connections
Designed for deploying in hazardous locations and for mission-critical applications

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

EXPC-F2150W

Descriere

Introduction

The EXPC-F2150W Series consists of 15.6-inch panel computers with a 11th Gen Intel Core™ i processor that deliver a reliable, durable, and versatile platform for use in industrial, hazardous, and mission-critical environments. The EXPC-F2150W panel computers come with a rich set of communication interfaces to meet the needs of all your industrial-application scenarios. The panel computers are also provided with a DisplayPort and VGA video outputs for extending the display.

The EXPC-F2150W panel computers come in a fanless design for operations in the -40 to 70°C temperature range and a streamlined enclosure for efficient heat dissipation, making them the most reliable industrial platforms available for harsh, hot, outdoor environments such as oil and gas fields, drilling platforms, and power stations, as well as smart heater solutions. The panel computers are also specifically designed with sunlight-readable features such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touch screen, optical bonding, and anti-glare design, to provide an excellent user experience for outdoor applications.

Appearance

Front View

Bottom View - Models With AC Power Input

Bottom View - Models With DC Power Input

Side View

Specificație tehnică

Computer

CPU	TL3 Models: Inte® Core™ i3-1115G4E TL5 Models: Intel® Core™ i5-1145G7E TL7 Models: Intel® Core™ i7-1185G7E
Graphics Controller	Intel® Core i7 Models: Intel® Iris® Xe Graphics Intel® Core i5/i3 Models: Intel® UHD Graphics
System Memory Pre-installed	16 GB (64 GB max)
System Memory Slot	SODIMM DDR4 slots x 2, up to 64 GB
Pre-installed OS	OS is not pre-installed OS installation via CTOS
Supported OS	Windows 11 Professional 23H2 64-bit Windows 10 Enterprise LTSC 21H2 Debian 11 (driver)
Storage Slot	M.2 B key x 1 for SSD (internal, optional) CFexpress slots x 1 (external, default)

Computer Interface

Ethernet Ports	Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports	RS-232/422/485 ports x 3, software selectable (DB9 male)
USB 3.0	USB 3.0 hosts x 2, type-A connectors
USB 2.0	USB 2.0 hosts x 2, type-A connectors
Audio Input/Output	Line in x 1, mic-out x 1, 3.5 mm phone jack
Video Output	DisplayPort x 1 VGA x 1, 15-pin D-sub connector (female)
Expansion Slots	M.2 B key slot x 1 for 5G module M.2 E key slot x 1 for Wi-Fi module
TPM	TPM v2.0
Remote Management	Intel® Active Management Technology (AMT) support

LED Indicators

System	Power x 1 Storage x 1, SSD
LAN	2 per port, configurable by BIOS settings or via a Moxa software utility
Serial	2 per port, configurable by BIOS settings or via a Moxa software utility

Display

Active Display Area	344.16 (H) x 193.59 (V) mm
Aspect Ratio	16:9
Contrast Ratio	750:1
Light Intensity (Brightness)	1200 nits
Max. No. of Colors	16.7M (8-bit/color)
Panel Size	15.6 in
Panel Type	SFT
Pixel Pitch (RGB)	0.17925 (H) x 0.17925 (V) mm
Pixels	1920 x 1080
Response Time	30 ms (typ.)
Viewing Angles	Horizontal: 88°/88° Vertical: 88°/88°

Touch Function

Touch Type	Projective Capacitive touchscreen (PCAP) GGG sensor with optical bonding
Touch Support Points	4 points (max multi-touch points) 1 point (glove-friendly design)

Serial Interface

Baudrate	50 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Flow Control	RTS/CTS, XON/XOFF ADDC (automatic data direction control) for RS-485 RTS Toggle (RS-232 only)
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 1.5, 2

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage	DC Models: 9 to 36 VDC AC Models: 100 to 240 VAC
Power Consumption	70 W (max.) 100 W (with thermal heater)

Physical Characteristics

Housing	Aluminum
IP Rating	IP66 (front) IP42 (rear; with all IOs plugged in)
Dimensions	403.99 x 274.48 x 99 mm (15.91 x 10.81 x 3.90 in)
Weight	6,900 g (15.21 lb)

Environmental Limits

Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-45 to 75°C (-49 to 167°F)
Altitude	3000 m

Standards and Certifications

EMC	EN 55032/35 EN 61000-6-2/-6-4
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; 1.8, 2.6, 3.5, 5 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 2 kV(AC), 1 kV(DC); Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC L-L), 1 kV (DC L-G); Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Hazardous Locations	EN / IEC 60079-0 EN / IEC 60079-7 EN / IEC 60079-15 Certification process underway
Mechanical Protection Rating	IEC 60529, IP code
Safety	UL 62368-1 EN 62368-1 IEC 62368-1
Shock	IEC 60068-2-27 compliant (with CFexpress card, 20G)
Vibration	IEC 60068-2-27 compliant (with CFexpress card, 20G)
UV Protection	IEC60068-2-5 CIE85: 300 to 3000 nm (included UV, visible, IR); 1000 hrs (procedure C; continuously for 24 hrs)
