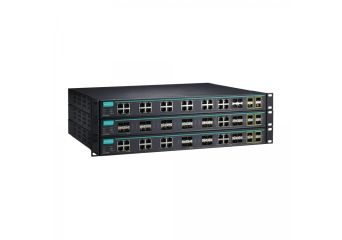

ICS-G7528A

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7528A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, making them ideal for large-scale industrial networks.

The ICS-G7528A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions
• DHCP Option 82 for IP address assignment with different policies
• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
• IGMP snooping and GMRP for filtering multicast traffic
• IEEE 802.1Q VLAN and GVRP protocol to ease network planning
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Automatic warning by exception through email and relay output
• Digital inputs for integrating sensors and alarms with IP networks
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• Access control lists (ACL) increase the flexibility and security of network management (ICS-G7800A Series)
• SNMPv1/v2c/v3 for different levels of network management
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Port mirroring for online debugging
• Redundant, dual AC power inputs
