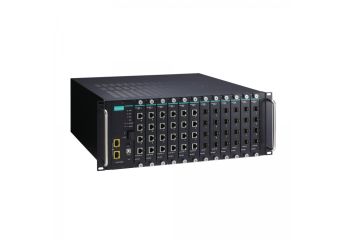

ICS-G7750A

48G+2 10GbE-port Layer 2 Full Gigabit modular managed Ethernet switches

Producător: MOXA

Up to 48 Gigabit Ethernet ports plus 2 10G Ethernet ports
Up to 50 optical fiber connections (SFP slots)
Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
Fanless, -10 to 60°C operating temperature range
Modular design for maximum flexibility and hassle-free future expansion
Hot-swappable interface and power modules for continuous operation
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Isolated redundant power inputs with universal 110/220 VAC power supply range
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Preț de la 89.885,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele
Accesorii
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

ICS-G7750A

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
ICS-G7750A-2XG-HV-HV Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module and 2 10GbE SPF+ slots, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature	Out of stock	Garanție:		89.885,00 RON 110.558,55 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

ICS-G7750A-2XG-HV-HV

Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module and 2 10GbE SPF+ slots, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature

Disponibilitate: Out of stock

Preț net:

89.885,00 RON

Intră în cont pentru a vedea prețurile

Accesorii

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
IM-G7000A-4GSFP Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperature	Out of stock	Garanție:		4.410,00 RON 5.424,30 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

IM-G7000A-4GSFP

Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperature

Disponibilitate: Out of stock

Preț net:

4.410,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
IM-G7000A-4GTX Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperature	Out of stock	Garanție:		4.410,00 RON 5.424,30 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

IM-G7000A-4GTX

Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperature

Disponibilitate: Out of stock

Preț net:

4.410,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
IM-G7000A-4PoE Gigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperature	Out of stock	Garanție:		6.870,00 RON 8.450,10 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

IM-G7000A-4PoE

Gigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, 0 to 60°C operating temperature

Disponibilitate: Out of stock

Preț net:

6.870,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
SFP-10GERLC-T SFP+ module with 1 10GBase-ER port for 40 km transmission, LC connector, -40 to 85°C	Out of stock	Garanție:		37.390,00 RON 45.989,70 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

SFP-10GERLC-T

SFP+ module with 1 10GBase-ER port for 40 km transmission, LC connector, -40 to 85°C

Disponibilitate: Out of stock

Preț net:

37.390,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
SFP-10GLRLC-T SFP+ module with 1 10GBase-LR port for 10 km transmission, LC connector, -40 to 85°C	Out of stock	Garanție:		11.440,00 RON 14.071,20 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

SFP-10GLRLC-T

SFP+ module with 1 10GBase-LR port for 10 km transmission, LC connector, -40 to 85°C

Disponibilitate: Out of stock

Preț net:

11.440,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
SFP-10GSRLC-T SFP+ module with 1 10GBase-SR port for 33m/82m/300m/400m transmission, LC connector, -40 to 85°C	Out of stock	Garanție:		7.015,00 RON 8.628,45 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

SFP-10GSRLC-T

SFP+ module with 1 10GBase-SR port for 33m/82m/300m/400m transmission, LC connector, -40 to 85°C

Disponibilitate: Out of stock

Preț net:

7.015,00 RON

Intră în cont pentru a vedea prețurile

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
SFP-10GZRLC-T SFP+ module with 1 10GBase-ZR port for 80 km transmission, LC connector, -40 to 85°C	Out of stock	Garanție:		49.595,00 RON 61.001,85 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

SFP-10GZRLC-T

SFP+ module with 1 10GBase-ZR port for 80 km transmission, LC connector, -40 to 85°C

Disponibilitate: Out of stock

Preț net:

49.595,00 RON

Intră în cont pentru a vedea prețurile

Descriere

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7750A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 2 10 Gigabit Ethernet ports.

The ICS-G7750A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Digital inputs for integrating sensors and alarms with IP networks
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Redundant, dual AC power inputs

Specificație tehnică

Input/Output Interface

Alarm Contact Channels	Relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs	+13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA

Ethernet Interface

10GbE SFP+ Slots	2
Slot Combination	12 slots for 4-port interface modules (10/100/1000BaseT(X), or PoE+ 10/100/1000BaseT(X), or 100/1000BaseSFP slots). See the IM-G7000A datasheet for Gigabit Ethernet module product information.
Standards	IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3ae for 10 Gigabit Ethernet

Ethernet Software Features

Management	ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control
Filter	802.1Q, GMRP, GVRP, IGMP v1/v2/v3
Redundancy Protocols	Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON
Security	Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, Sticky MAC, NTP authentication, Port Lock, RADIUS, SSH, TACACS+
Time Management	NTP Server/Client, SNTP
Industrial Protocols	EtherNet/IP, Modbus TCP
MIB	Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Switch Properties

DRAM	128 MB
Flash	16 MB
IGMP Groups	4096
Jumbo Frame Size	9.6 KB
MAC Table Size	16 K
Max. No. of VLANs	256
Packet Buffer Size	12 Mbits
VLAN ID Range	VID 1 to 4094
Priority Queues	8

USB Interface

Storage Port

USB Type A

Serial Interface

Console Port

USB-serial console (Type B connector)

Power Parameters

Input Voltage	110 to 220 VAC, Redundant dual inputs
Operating Voltage	85 to 264 VAC
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Input Current	0.94/0.55 A @ 110/220 VAC

Physical Characteristics

IP Rating	IP30
Dimensions	440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Weight	12,900 g (28.5 lb)
Installation	Rack mounting

Environmental Limits

Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

Safety	EN 60950-1, UL 60950-1
EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Railway	EN 50121-4
Freefall	IEC 60068-2-32
Shock	IEC 60068-2-27
Vibration	IEC 60068-2-6
