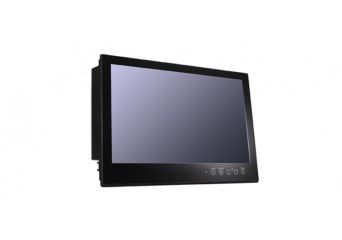

MD-224

24-inch marine display

Producător: MOXA

24-inch display, 16:9 aspect ratio
300-nit or sunlight-readable 1000-nit LED backlight
Color calibrated for ECDIS compliance (available by CTOS)
Full range dimming, 0 to 100%
SavvyTouch display controls
Built-in RS-232/422/485 interfaces
Dual power supplies (AC & DC)
IP54-rated front panel (IP66 available by request)

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

MD-224

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
MD-224X 24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)	Out of stock	Garanție:

MD-224X

24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)

Disponibilitate: Out of stock

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
MD-224Z 24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)	Out of stock	Garanție:

MD-224Z

24-inch display, 16:9 aspect ratio, full HD (1920x1080), projected-capacitive touch panel, LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)

Disponibilitate: Out of stock

Descriere

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market.

The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.

ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

Specificație tehnică

Display

Aspect Ratio	16:9
Contrast Ratio	5,000:1
Max. No. of Colors	16.7M (8-bit/color)
Panel Size	24-inch viewable image
Panel Type	MVA
Pixels	1920 x 1080
Response Time	25 ms (gray to gray)
Viewing Angles	178°/178°
Light Intensity (Brightness)	MD-224X/224Z: 300 cd/m² MD-224Z-HB: 1000 cd/m²

Computer Interface

Serial Ports	RS-232 ports x 1 (DB9 male) RS-232/422/485 ports x 1, software-selectable (terminal block)
Video Input	DVI-D x 1, 29-pin DVI-D connectors (female) VGA x 1, 15-pin D-sub connector (female)

Touch Function

Touch Type	MD-224Z/224Z-HB: Capacitive Touch (PCAP) MD-224X: None
Touch Support Points	MD-224Z/224Z-HB: 4 points

Serial Interface

Baudrate	50 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Flow Control	RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity	None, Even, Odd, Space, Mark
Stop Bits	1, 1.5, 2

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage	100 to 240 VAC, 24 VDC (18 to 30 V)
Power Consumption	40 W (max.)

Physical Characteristics

Housing	Metal
IP Rating	MD-224X: IP54, front MD-224X: IP22, rear MD-224Z: IP54, front MD-224Z: IP22, rear MD-224Z-HB: IP66, front MD-224Z-HB: IP22, rear
Dimensions	595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)
Weight	9,570 g (21.10 lb)
Installation	Desktop, Panel mounting, VESA mounting

Environmental Limits

Operating Temperature	-15 to 55°C (5 to 131°F)
Storage Temperature (package included)	-20 to 60°C (-4 to 140°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1kV
Maritime	ABS, CCS, DNV-GL, IEC 60945
Safety	UL 60950-1
