- Protocol conversion between Modbus and EtherNet/IP
- Supports EtherNet/IP adapter
- Supports Modbus RTU/ASCII/TCP client
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Easy device configuration via a web-based console
- microSD card for configuration backup/duplication
- Supports dual redundant DC power inputs and 1 relay output
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection
- Developed according to IEC 62443-4-2 with Secure Boot
Preț de la 3.005,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5

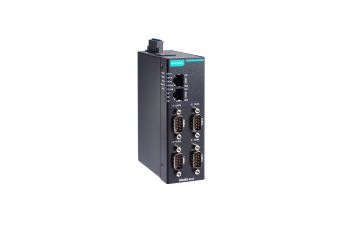

MGate 5135/5435 Series
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate 51351-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperatureOut of stock Garanție: 3.005,00 RON3.696,15 RONIntră în cont pentru a vedea prețurile MGate 51351-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:3.005,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate 5135-T1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperatureOut of stock Garanție: 3.765,00 RON4.630,95 RONIntră în cont pentru a vedea prețurile MGate 5135-T1-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:3.765,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate 54354-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperatureOut of stock Garanție: 5.055,00 RON6.217,65 RONIntră în cont pentru a vedea prețurile MGate 54354-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -10 to 60°C operating temperatureDisponibilitate: Out of stockPreț net:5.055,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMGate 5435-T4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperatureOut of stock Garanție: 6.260,00 RON7.699,80 RONIntră în cont pentru a vedea prețurile MGate 5435-T4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperatureDisponibilitate: Out of stockPreț net:6.260,00 RON
Descriere
Introduction
The MGate 5135 /5435 gateways are 1- and 4-port industrial Ethernet gateways, respectively for Modbus RTU/ASCII/TCP and EtherNet/IP network communications. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5135/5435 gateway as a Modbus client to collect data and exchange data with the EtherNet/IP host. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.
Easy Configuration
The MGate 5135/5435 gateways are provided with a web console to make configuration easy without having to install an extra utility. In addition, HTTPS encryption of communication ensures higher network security. In most data-acquisition applications, configuration of devices with Modbus commands can be time-consuming and increase costs. The MGate 5135/5435 gateways provide offline configuration via a CSV file to help complete the Modbus settings quickly. The MGate gateways also provide software-configurable pull high/low and termination resistor settings for RS-485 2-wire to reduce efforts and the need to open the chassis.
Easy Troubleshooting
The MGate 5135/5435 gateways provide a variety of maintenance functions to reduce troubleshooting time and cost, including LED indicators, protocol diagnostics, traffic monitor, and tag view. These tools help you capture and check data to easily identify the root cause of issues, especially during the installation stage. The MGate gateways also come with status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. The fault protection function executes actions pre-defined by the user when a host gets disconnected to prevent the end devices from going offline for long periods of time..
Specificație tehnică
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2 Auto MDI/MDI-X connection |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Ethernet Software Features
| Industrial Protocols | Modbus TCP Client, EtherNet/IP Adapter |
| Configuration Options | Web Console (HTTPS), Device Search Utility (DSU) |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP |
| MIB | RFC1213, RFC1317 |
| Time Management | NTP Client |
- Security Functions
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Security Protocols | SNMPv3 SNMPv2c Trap HTTPS (TLS 1.3) |
- Serial Interface
| No. of Ports | MGate 5135/5135-T: 1MGate 5435/5435-T: 4 |
| Connector | DB9 male |
| Serial Standards | RS-232/422/485 |
| Baudrate | 300 bps to 921.6 kbps |
| Data Bits | 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 2 |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| RS-485 Data Direction Control | ADDC (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms software configurable |
| Terminator for RS-485 | 120 ohms software configurable |
| Isolation | 2 kV (built-in) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- Serial Software Features
| Industrial Protocols | Modbus RTU/ASCII Client |
- Modbus RTU/ASCII
| Mode | Client |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Server Connections | 31 |
| Max. No. of Commands | 128 per serial port |
- Modbus TCP
| Mode | Client |
| Functions Supported | 1, 2, 3, 4, 5, 6, 15, 16, 23 |
| Max. No. of Server Connections | 32 |
| Max. No. of Commands | 128 |
| Total Output Data Size | MGate 5135: 2048 bytes MGate 5135-T: 2048 bytes MGate 5435: 4000 bytes MGate 5435-T: 4000 bytes |
| Total Input Data Size | MGate 5135: 2048 bytes MGate 5135-T: 2048 bytes MGate 5435: 4000 bytes MGate 5435-T: 4000 bytes |
- EtherNet/IP
| Mode | Adapter |
| CIP Objects Supported | Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port |
| Max. No. of Scanner Connections | MGate 5135/5135-T: 4 (read/write)MGate 5435/5435-T: 8 (read/write) |
| Input Data Size | MGate 5135: 496 bytes/connection (total: 1984 bytes) bytes MGate 5135-T: 496 bytes/connection (total: 1984 bytes) bytes MGate 5435: 496 bytes/connection (total: 3968 bytes) bytes MGate 5435-T: 496 bytes/connection (total: 3968 bytes) bytes |
| Output Data Size | MGate 5135: 496 bytes/connection (total: 1984 bytes) bytes MGate 5135-T: 496 bytes/connection (total: 1984 bytes) bytes MGate 5435: 496 bytes/connection (total: 3968 bytes) bytes MGate 5435-T: 496 bytes/connection (total: 3968 bytes) bytes |
- Memory
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
- Power Parameters
| Input Voltage | 12 to 48 VDC |
| Input Current | 455 mA (max) |
| Power Connector | Spring-type Euroblock terminal |
- Relays
| Contact Current Rating | Resistive load: 2 A @ 30 VDC |
- Physical Characteristics
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | MGate 5135/5135-T: 25 x 90 x 130 mm (0.98 x 3.54 x 5.1 in)MGate 5435/5435-T: 42 x 90 x 130 mm (1.65 x 3.54 x 5.1 in) |
| Weight | MGate 5135/5135-T: 294 g (0.65 lb)MGate 5435/5435-T: 403 g (0.89 lb |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | EN 61010-2-201, UL 61010-2-201 |
| EMC | EN 61000-6-2/-6-4 |
| EMI | FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF |
| Freefall | IEC 60068-2-31 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6, IEC 60068-2-64 |
- MTBF
| Time | MGate 5135/5135-T: 1,240,821 hrsMGate 5435/5435-T: 689,989 hrs hrs |
| Standards | Telcordia SR332 |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
