Producător: MOXA
- Smallest embedded device server available—only 29 x 17 x 12.6 mm
- Supports EZPower for 3.3 to 5 VDC system power input
- Green design with extremely low power consumption
- Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
- MiiNePort NetEZ technology makes integration incredibly easy
- Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
Preț de la 270,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2Embedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, 0 to 55°CÎn stocGaranție: 270,00 RON332,10 RONIntră în cont pentru a vedea prețurile MiiNePort E2Embedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, 0 to 55°CDisponibilitate:În stocPreț net:270,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2-HEmbedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, 0 to 55°CÎn stocGaranție: 285,00 RON350,55 RONIntră în cont pentru a vedea prețurile MiiNePort E2-HEmbedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, 0 to 55°CDisponibilitate:În stocPreț net:285,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2-TEmbedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, -40 to 85°CÎn stocGaranție: 375,00 RON461,25 RONIntră în cont pentru a vedea prețurile MiiNePort E2-TEmbedded device server for TTL devices, drop-in module, up to 230.4Kbps, without RJ45, -40 to 85°CDisponibilitate:În stocPreț net:375,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2-H-TEmbedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, -40 to 85°COut of stock Garanție: 385,00 RON473,55 RONIntră în cont pentru a vedea prețurile MiiNePort E2-H-TEmbedded device server for TTL devices, drop-in module, up to 921.6Kbps, without RJ45, -40 to 85°CDisponibilitate: Out of stockPreț net:385,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2-STStarter kit for the MiiNePort E2 series, module includedOut of stock Garanție: 940,00 RON1.156,20 RONIntră în cont pentru a vedea prețurile MiiNePort E2-STStarter kit for the MiiNePort E2 series, module includedDisponibilitate: Out of stockPreț net:940,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareMiiNePort E2-H-STStarter kit for the MiiNePort E2-H series, module includedOut of stock Garanție: 960,00 RON1.180,80 RONIntră în cont pentru a vedea prețurile MiiNePort E2-H-STStarter kit for the MiiNePort E2-H series, module includedDisponibilitate: Out of stockPreț net:960,00 RON
Descriere

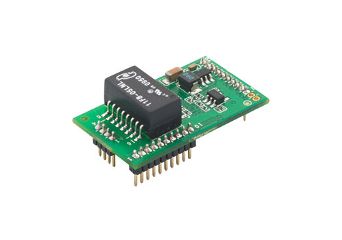

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.
Moxa’s Second-generation SoC
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E2, which uses the MiiNe for its SoC, is one of the world’s tiniest embedded device servers and has the lowest power consumption among similar products. The MiiNe’s features include:
- Cost-effective serial-to-Ethernet conversions
- Arm core
- Advanced UART technology
- Internal 2 MB Flash and 4 MB SDRAM memory
Specificație tehnică
- EMBADDED SYSTEM
| CPU | 32-bit Arm Core |
- MEMORY
| Flash | 2 MB |
| SDRAM | 4 MB |
- INPUT/OUTPUT INTERFACE
| Configurable DIO Channels (by software) | 4 |
- ETHERNET INTERFACE
| 10/100BaseT(X) Ports, Auto MDI/MDI-X | 4-pin pin header |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- ETHERNET SOFTWARE FEATURES
| Configuration Options | Web Console (HTTP), Windows Utility |
| Management | ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
- SERIAL INTERFACE
| No. of Ports | 1 |
| Serial Standards | TTL |
| Operation Modes | MiiNePort E2 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Ethernet Modem mode, MCSC mode MiiNePort E2-SDK: Real COM mode, Ethernet Modem mode |
| Baudrate | MiiNePort E2 Series: 50 bps to 230.4 kbps MiiNePort E2-H/-SDK Series: 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
- SERIAL SIGNALS
| TTL | TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
- NETEZ TECHNOLOGY
| NetEZ Functions | EZPower, EZPage, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication) |
- SERIAL SOFTWARE FEATURES
| Serial to Ethernet Sample Source Code | MiiNePort E2-SDK (Integrated in MiiNePort-IDE): 1. TCP Server Echo 2. TCP Server to Serial (Single connection) 3. TCP Server to Serial (Multi-connection) 4. TCP Client Echo 5. TCP Client to Serial (Startup) 6. TCP Client to Serial (Any character) 7. TCP Client to Serial (Designed destination TCP/IP port from serial) 8. UDP Echo 9. UDP to Serial |
- POWER PARAMETERS
| Input Current | 157 mA @ 3.3 VDC. |
| Input Voltage | 3.3 to 5 VDC |
- PHYSICAL CHARACTERISTICS
| Dimensions | MiiNePort E2/E2-H/E2-SDK Series: 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in) |
| Weight | MiiNePort E2/E2-H Series: 5 g (0.01 lb) MiiNePort E2-ST/E2-H-ST/E2-SDK: 77 g (0.17 lb) |
| Form Factor Type | Drop-in modules |
- ENVIRONMENTAL LIMITS
| Operating Temperature | Standard models: 0 to 55˚C (32 to 131˚F) Wide Temp. models: -40 to 85˚C (-40 to 185˚F) |
| Weight | -40 to 60°C (-40 to 140°F) |
| Form Factor Type | 5 to 95% (non-condensing) |
- STANDARD AND CERTIFICATIONS
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
- DECLARATION
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | 5,696,350 hrs |
| Standards | Telcordia SR332 |
Descarca documentatie
