8 FE copper + 2 GbE SFP multiport industrial secure router
Preț de la 5.400,00 RON Net
Dacă se plasează comanda până în ora 15:00, coletul va fi expediat în aceeași zi În stoc
Producător: MOXA
- User-friendly NAT functionality simplifies network integration
- Hands-free network access control through automatic whitelisting of locally connected devices
- Ultra-compact size and robust industrial design suitable for cabinet installation
- Integrated security features to ensure device and network safety
- Supports secure boot for checking system integrity
- -40 to 75°C operating temperature range (-T model)
Preț de la 2.910,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNAT-1022-port industrial Network Address Translation (NAT) devices, -10 to 60°C operating temperatureRECOMANDAT
În stocGaranție: 2.910,00 RON3.579,30 RONIntră în cont pentru a vedea prețurile NAT-1022-port industrial Network Address Translation (NAT) devices, -10 to 60°C operating temperatureRECOMANDAT
Disponibilitate:În stocPreț net:2.910,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNAT-102-T2-port industrial Network Address Translation (NAT) devices, -40 to 75°C operating temperatureÎn stocGaranție: 3.400,00 RON4.182,00 RONIntră în cont pentru a vedea prețurile NAT-102-T2-port industrial Network Address Translation (NAT) devices, -40 to 75°C operating temperatureDisponibilitate:În stocPreț net:3.400,00 RON
Descriere

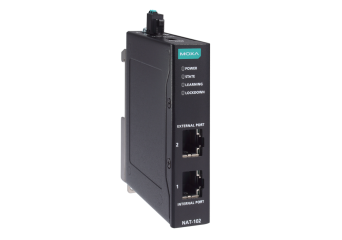

The NAT-102 Series is an industrial NAT device that is designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.
Quick and User-friendly Access Control
The NAT-102 Series’ Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature not only helps you manage access control but also makes device replacements much more efficient.
Industrial-grade and Ultra-compact Design
The NAT-102 Series’ rugged hardware makes these NAT devices ideal for deployment in harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the ultra-compact size allows the NAT-102 Series to be easily installed into cabinets.
Specificație tehnică
- Input/Output Interface
| Buttons | Reset button |
- Ethernet Interface
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) |
- Ethernet Software Features
| Management | Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH |
| Security | Secure Boot, Trust access control |
| Time Management | NTP Server/Client, SNTP |
| Unicast Routing | Static Route |
| Routing | Throughput: 15K packets per second (max. 100 Mbps) |
| Routing Table | Max. 32 routing rules |
| Concurrent Connections | Max. 30K |
| Connections Per Second | Max. 4.5K |
- LED Interface
| LED Indicators | POWER, STATE, LEARNING, LOCKDOWN |
- Firewall
| Filter | IP address, MAC address, Ports |
| Port-based Auto Learning Lock | MAC address IP address |
| Throughput | Max. 15K packets per second (max. 100 Mbps) |
- NAT
| Features | 1-to-1, N-to-1, Port forwarding, NAT loopback |
| Throughput | Max. 15K packets per second (max. 100 Mbps) |
- Real-Time Firewall / VPN Event Log
| Event Type | Policy enforcement |
| Media | Local storage, Syslog server |
- Serial Interface
| Console Port | RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
| Connector | USB Type-C |
- Power Parameters
| Connection | Removable terminal block |
| Input Voltage | 12/24/48 VDC |
| Input Current | 0.196 A @ 12 VDC 0.100 A @ 24 VDC 0.056 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
- Physical Characteristics
| Housing | Metal |
| Dimensions | 20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in) |
| Weight | 210 g (0.47 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | Standard Models: -10 to 60°C (14 to 140°F)Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | UL 62368-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Hazardous Locations | ATEX, Class I Division 2 |
| Traffic Control | NEMA TS2 |
| Railway | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
- MTBF
| Time | 2,135,469 hrs |
| Standards | Telcordia (Bellcore), GB |
- Warranty
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
