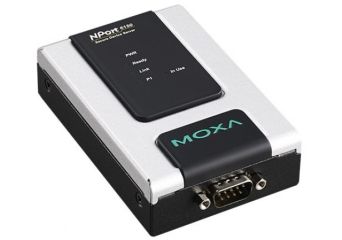

main product photo

NPort 6150

1-port RS-232/422/485 secure terminal servers

Producător: MOXA
Producător: MOXA
  •  Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  •  Supports nonstandard baudrates with high precision
  •  Enhanced remote configuration with HTTPS and SSH
  •  Port buffers for storing serial data when the Ethernet is offline
  •  Supports IPv6
  •  Generic serial commands supported in Command-by-Command mode
  •  Security features based on IEC 62443

Preț de la 1.400,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 2 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
Serwer portów szeregowych

NPort 6150

Modele

Accesorii

Useful products

Descriere

The NPort® 6000 device servers use the SSL and SSH protocols to transmit encrypted serial data over Ethernet. The NPort® 6000’s 3-in-1 serial port supports RS-232, RS-422, and RS-485, with the interface selected from an easy-to-access configuration menu. The NPort® 6000 2-port device servers are available for connecting to a 10/100BaseT(X) copper Ethernet or 100BaseT(X) fiber network. Both single-mode and multi-mode fiber are supported.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6000 supports the SSL and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6000, users can rest assured that serial data is transmitted securely over both private and public networks.



Specificație tehnică

  • Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector) 1
Auto MDI/MDI-X connection
Magnetic Isolation Protection 1.5 kV (built-in)
  • Ethernet Software Features
Configuration Options Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API Android 3.1.x and later
MIB MIB-II
Time Management SNTP Client
Unicast Routing RIPV1/V2, Static Route
Authentication Local Account Accessibility, RADIUS, TACACS+
  • Serial Interface
Connector DB9 male
No. of Ports 1
Serial Standards RS-232, RS-422, RS-485
Secure Operation Modes Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS, DTR/DSR, XON/XOFF
Parity None, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control ADDC® (automatic data direction control)
Terminator for RS-485 120 ohms
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Power Parameters
Input Current 12-48 Vdc, 285 mA
Input Voltage 12 to 48 VDC
  • Reliability
Automatic Reboot Trigger Built-in WDT
Alert Tools Built-in buzzer and RTC (real-time clock)
  • Physical Characteristics
Housing Metal
Dimensions (with ears) 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
Dimensions (without ears) 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
Weight 190 g (0.42 lb)
Installation Desktop, DIN-rail mounting (with optional kit), Wall mounting
  • Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included) -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
IEC 61000-4-11
Traffic Control NEMA TS2
Vibration IEC 60068-2-6
Freefall IEC 60068-2-34
Safety UL 60950-1, UL 62368-1
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time 1,934,102 hrs
Standards Telcordia (Bellcore) Standard TR/SR

Descarca documentatie
