TN-4500B

EN 50155 8 to 28 ports Ethernet managed switches

Producător: MOXA

Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
Up to 28 Ethernet ports with M12 push-pull connectors
Up to 8 Gigabit ports with optional dual relay bypass functionality
Up to 24 PoE ports with a 150 W total PoE power budget
Isolated power with 24 to 110 VDC power supply range
-40 to 70°C system operating temperature range
Complies with all EN 50155 mandatory test items
Powered by MX-NOS Rail Version, a comprehensive management firmware tailored to the unique demands of onboard railway networks

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

TN-4500B

Descriere

Introduction

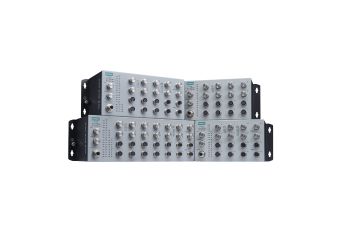

The ToughNet TN-4500B Series M12 managed Ethernet switches are designed for railway applications, including rolling stock installations. The switches use M12 circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500B Series Ethernet switches provide 8 to 28 Ethernet ports with or without IEEE 802.3at/af compliant PoE functionality. The Gigabit models further feature up to 8 Gigabit Ethernet ports.

The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communication systems. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can be deployed in harsh environments. TN-4500B Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

IEC 62443-4-2:2019 compliant cybersecurity features
Robust EN 50155 Ethernet switches for rolling stock applications
Turbo Ring and RSTP/MSTP/STP/MRP for network redundancy

Wall mounting installation
Automatic recovery of the IP address of connected devices
Configurable by web browser, Telnet/serial console, or Windows utility

Specificație tehnică

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	TN-4508B-CT-T :8 TN-4512B-CT-T :12 TN-4516B-CT-T :16 TN-4516B-8G-CT-T :8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)	TN-4512B PoE models: 8 TN-4516B PoE models: 8 TN-4520B models: 12 TN-4528B models: 20
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)	TN-4512B-8P-4G-CT-T: 4 TN-4516B-8G-CT-T: 8 TN-4516B-8P-4G-4GP-CT-T: 4 TN-4520B-12P-4G-4GP-CT-T: 4 TN-4528B-20P-4G-4GP-CT-T: 4
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)	TN-4516B PoE models: 4 TN-4520B PoE models: 4 TN-4528B PoE models: 4
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)	-4GBP models: 4
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af/at for PoE/PoE+ output IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3x for flow control

Ethernet Software Features

Configuration Options	Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
Filter	GMRP GVRP GARP 802.1Q VLAN IGMP Snooping v1/v2/v3 IGMP Querier Static Multicast
Management	IPv4/IPv6 Flow control Back Pressure Flow Control DHCP Server DHCP Client DHCP Relay Agent (Option 82) QoS/CoS/ToS ARP RARP LLDP Port Mirror Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB Loop Protection
MIB	P-BRIDGE MIB Q-BRIDGE MIB Ethernet-like MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups 1, 2, 3, 9
Redundancy Protocols	STP RSTP MSTP Turbo Ring v2 Link Aggregation Ring Coupling Static Port Trunk LACP MRP
Security	Rate Limit Trust access control Port Lock Sticky MAC HTTPS/SSL SSH RADIUS TACACS+ Access control list Login and password policy DHCP Snooping
Time Management	SNTP Server/Client NTP Server/Client

Switch Properties

MAC Table Size	16 K
IGMP Groups	1024
Max. No. of VLANs	256
VLAN ID Range	VID 1 to 4094
Priority Queues	8

LED Interface

LED Indicators PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

Serial Interface

Console Port M12 B-coded 5-pin female connector (RS-232)

USB Interface

M12 Connector M12 A-coded 5-pin female (for ABC-02 USB storage)

Power Parameters

Input Current	TN-4508B models: 0.46 A @ 24 V TN-4512B non-PoE models: 0.56 A @ 24 V TN-4512B PoE models: 4.9 A @ 24 V TN-4516B non-PoE models: 0.83 A @ 24 V TN-4516/20/28B PoE models: 9.3 A @ 24 V
Input Voltage	24/36/48/72/96/110 VDC Redundant dual inputs No. of power inputs: 2
Operating Voltage	16.8 to 137.5 VDC
Power Connector	M12 K-coded 5-pin male connector
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Total PoE Power Budget	TN-4512B PoE models: 80 W TN-4516B PoE models: 150 W TN-4516B/20B/28B PoE models: 150 W TN-4520B PoE models: 150 W TN-4528B PoE models: 150 W

Physical Characteristics

Housing	Metal
Dimensions	TN-4508B models: 180 x 115 x 83.5 mm (7.09 x 4.53 x 3.29 in) TN-4512B non-PoE models: 200 x 115 x 83.5 mm (7.87 x 4.53 x 3.29 in) TN-4512B PoE models: 200 x 115 x 102 mm (7.87 x 4.53 x 4.02 in) TN-4516B non-PoE models: 230 x 115 x 98 mm (9.06 x 4.53 x 3.86 in) TN-4516B PoE models: 230 x 115 x 133 mm (9.06 x 4.53 x 5.24 in) TN-4520B models: 280 x 115 x 133 mm (11.02 x 4.53 x 5.24 in) TN-4528B models: 348 x 115 x 133 mm (13.70 x 4.53 x 5.24 in)
IP Rating	IP42
Weight	TN-4508B models: 1,002 g (2.21 lb) TN-4512B non-PoE models: 1,123 g (2.48 lb) TN-4512B PoE models: 1,459 g (3.22 lb) TN-4516B non-PoE models: 1,500 g (3.31 lb) TN-4516B PoE models: 2,310 g (5.10 lb) TN-4520B models: 2,419 g (5.33 lb) TN-4528B models: 2,802 g (6.18 lb)
Installation	Wall mounting
Protection	PCB conformal coating

Environmental Limits

Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	3000 m

Standards and Certifications

EMC	EN 55032/35
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Radio Frequency	FCC
Railway	IEC 60068-2-1, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78 EN 50121-4 EN 50155 IEC 60571
Railway Fire Protection	EN 45545-2
Safety	UL 62368-1 IEC 62368-1 EN 62368-1 BSMI
Salt Spray Test	EN 50155
Shock	IEC 60068-2-27, IEC 61373, EN 50155
Vibration	IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test	ISTA 1A
Package Drop Test	ISTA 1A

Declaration

Green Product RoHS, CRoHS, WEEE

MTBF

Time	TN-4508B-CT-T: 1,964,461 hrs TN-4512B-CT-T: 1,447,268 hrs TN-4512B-8P-4G-CT-T: 1,033,581 hrs TN-4516B-CT-T: 1,346,637 hrs TN-4516B-8G-CT-T: 1,148,405 hrs TN-4516B-8P-4G-4GP-CT-T: 881,578 hrs TN-4516B-8P-4GP-4GBP-CT-T: 707,988 hrs TN-4520B-12P-4G-4GP-CT-T: 851,025 hrs TN-4520B-12P-4GP-4GBP-CT-T: 688,231 hrs TN-4528B-20P-4G-4GP-CT-T: 693,572 hrs TN-4528B-20P-4GP-4GBP-CT-T: 581,667 hrs
Standards	Telcordia SR332 Issue 4
