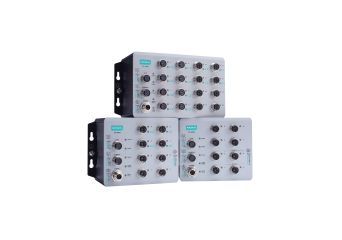

main product photo

TN-4900

EN 50155 Gigabit security routers

Producător: MOXA
Producător: MOXA
  •  8 Gigabit ports and up to 12 PoE ports
  •  IEC 61375 ETBN functionality (ETBN models)
  •  Dual bypass relay
  •  Isolated power input range from 24 to 110 VDC
  •  Complies with all EN 50155 mandatory test items
  •  -40 to 70°C operating temperature range
  •  IEC 62443-4-2:2019 certified
Preț de la 30.130,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 6 model

Promocja cenowa na model HDR-15-5

TN-4900

TN-4900

Modele

  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T
    8*GE ETBN router with 4*GE BP port, 24-110 VDC power input, conformal coating -40 to 70?, IP40.
    		 Out of stock Garanție:
    TN-4908-ETBN-4GTX-4GTXBP-WV-CT-T
    8*GE ETBN router with 4*GE BP port, 24-110 VDC power input, conformal coating -40 to 70?, IP40.
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-4GPoE-4GTX-WV-CT-T
    8 port router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    		 Out of stock Garanție:
    TN-4908-4GPoE-4GTX-WV-CT-T
    8 port router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T
    8 port ETBN router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    		 Out of stock Garanție:
    TN-4908-ETBN-4GPoE-4GTXBP-WV-CT-T
    8 port ETBN router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-ETBN-F-4GPoE-4GTXBP-WV-CT-T
    8 port ETBN firewall router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    		 Out of stock Garanție:
    TN-4908-ETBN-F-4GPoE-4GTXBP-WV-CT-T
    8 port ETBN firewall router includes 8*GE with 4PoE, 24 to 110 VDC power input, -40 to 70? operating temperature, IP40, conformal coating.
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-ETBN-F-4GTX-4GTXBP-WV-CT-T
    8*GE ETBN Firewall router with 4*GE BP, 24-110 VDC power input, conformal coating,-40 to 70?, IP40.
    		 Out of stock Garanție:
    TN-4908-ETBN-F-4GTX-4GTXBP-WV-CT-T
    8*GE ETBN Firewall router with 4*GE BP, 24-110 VDC power input, conformal coating,-40 to 70?, IP40.
    Disponibilitate: Out of stock
    -
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    TN-4908-8GTX-WV-CT-T
    8*GE router, 24 to 110 VDC power input, conformal coating, -40 to 70? operating temperature, IP40.
    		 Out of stock Garanție:
    30.130,00 RON
    37.059,90 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    TN-4908-8GTX-WV-CT-T
    8*GE router, 24 to 110 VDC power input, conformal coating, -40 to 70? operating temperature, IP40.
    Disponibilitate: Out of stock
    Preț net:
    30.130,00 RON
    Intră în cont pentru a vedea prețurile

Descriere

Introduction

The ToughNet TN-4900 Series, designed for rolling stock Ethernet networks, is a set of high-performance M12 routers with 8 Gigabit ports and up to four bypass relay ports. These routers feature firewall, ETBN, and routing functionality to facilitate the deployment of applications across networks. The TN-4900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-4900 Series supports a wide power input range of 24 to 110 VDC and can operate in temperatures of -40 to 70°C for extended periods of time. Furthermore, these routers are compliant with the mandatory requirements of EN 50155, making them suitable for a variety of industrial applications.



Additional Features and Benefits

  • IEC 61375-2-3, 61375-2-5–compliant ETBN

  • IEC 62443-4-2:2019–compliant cybersecurity

  •

  • Routing functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks

  • NAT makes IP management easier as end devices in different carriages can use the same IP addresses

  • Leading EN 50155 Ethernet router for rolling stock applications

  • Turbo Ring and RSTP/STP for network redundancy

  • Panel mounting installation

  • Line-swap fast recovery

  • Automatic recovery of connected device’s IP addresses

  • LLDP for automatic topology discovery in network management software

  • Configurable by web browser, Telnet/serial console, and CLI Windows utility

Specificație tehnică

  • Ethernet Interface
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) TN-4908 non-PoE non-ETBN Models: 8TN-4908 non-PoE ETBN Models: 4TN-4908 PoE non-ETBN Models: 4TN-4916 PoE non-ETBN models: 4
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay) ETBN Models: 4
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) TN-4916 PoE Models: 8
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector) PoE Models: 4
Standards IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3 for 10BaseT
  • Ethernet Software Features
Configuration Options Command Line Interface (CLI) through Serial/Telnet/SSH Web Console (HTTP/HTTPS) Windows Utility
Filter IGMP v1/v2 Static Multicast 802.1Q
Management Back Pressure Flow Control SNMP Inform LLDP Syslog HTTP Flow control SMTP QoS/CoS/ToS Port Mirror SNMP Trap SNMPv1/v2c/v3 IPv4 Telnet DHCP server TFTP RARP Account Management
Redundancy Protocols RSTP Static Port Trunk Turbo Ring v2 STP
Routing Redundancy VRRP
Security Port Lock SSH Broadcast storm protection TACACS+ Local Account Accessibility HTTPS/SSL
Time Management SNTP NTP Server/Client
Unicast Routing RIPV1/V2 OSPF Static Route
Multicast Routing Static Route
  • DoS and DDoS Protection
Technology NMAP-ID Scan ARP-Flood SYN/FIN Scan Null Scan ICMP-Death FIN Scan SYN-Flood NEWWithout-SYN Scan Xmas Scan NMAP-Xmas Scan SYN/RST Scan
  • Firewall
Filter ICMP MAC address Ethernet protocols Ports IP address DDoS
Quick Automation Profiles Telnet HTTP RADIUS PROFINET EtherCAT IPsec SSH PPTP IEC 60870-104 FOUNDATION Fieldbus L2TP EtherNet/IP LonWorks DNP Modbus TCP FTP
Stateful Inspection Router firewall Transparent (bridge) firewall
Throughput Max. 500,000 packets per second
  • Switch Properties
IGMP Groups 256
MAC Table Size 16 K
Max. No. of VLANs 16
VLAN ID Range VID 1 to 4094
  • LED Interface
LED Indicators STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
  • NAT
Features 1-to-1 Port forwarding N-to-1
  • Serial Interface
Console Port RS-232 (M12 B-coded 5-pin female connector)
  • USB Interface
M12 Connector M12 A-coded 5-pin female (for ABC-02 USB storage)
  • Power Parameters
Input Current TN-4908 Non-PoE Models: 0.68 A @ 24 VTN-4908 PoE Models: 3.6 A @ 24 VTN-4916 PoE Models: 5.9 A @ 24 V
Input Voltage 24/36/48/72/96/110 VDC Redundant dual inputs No. of power inputs: 2
Operating Voltage 16.8 to 137.5 VDC
Overload Current Protection Supported
Power Connector M12 K-coded 5-pin male connector
Reverse Polarity Protection Supported
Total PoE Power Budget TN-4908 PoE Models: 50 WTN-4916 PoE Models: 95 W
  • Physical Characteristics
Housing Metal
Dimensions TN-4908 Non-PoE Models: 160 x 115 x 70 mm (6.30 x 4.53 x 2.76 in)TN-4908 PoE Models: 160 x 115 x 100 mm (6.30 x 4.53 x 3.94 in)TN-4916 PoE Models: 206 x 115 x 100 mm (8.10 x 4.53 x 3.94 in)
IP Rating IP40
Weight TN-4908 Non-PoE Models: 1120 g (2.47 lb)TN-4908 PoE Models: 1640 g ( 3.62 lb)TN-4916 PoE Models: 1990 g ( 4.39 lb)
Installation Wall mounting
Protection Optional PCB conformal coating
  • Environmental Limits
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032, EN 55035
EMS IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Freefall IEC 60068-2-31
Radio Frequency FCC
Railway EN 50121-4 EN 50155 IEC 60571
Railway Fire Protection EN 45545-2
Safety IEC 62368, UL 62368
Shock IEC 60068-2-27, IEC 61373, EN 50155
Vibration IEC 60068-2-64, IEC 61373, EN 50155
  • Declaration
Green Product RoHS, CRoHS, WEEE
  • MTBF
Time TN-4908 Non-PoE Models: 795,840 hrsTN-4908 Non-PoE ETBN Models: 648,903 hrsTN-4908 PoE Models: 644,898 hrsTN-4908 PoE ETBN Models: 545,021 hrsTN-4916 PoE Models: 550,148 hrsTN-4916 PoE ETBN Models: 472,578 hrs
Standards Telcordia SR332
  • Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty
