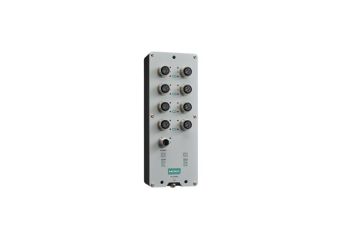

TN-5300A

EN 50155 5/8-port unmanaged Ethernet switches

Producător: MOXA

Rugged die-cast design for use in harsh environments
Isolated power input range from 24 to 110 VDC
Supports regular and push-pull M12 connectors
Complies with all EN 50155 mandatory test items
-40 to 70°C wide-temperature design

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 5 model

Promocja cenowa na model HDR-15-5

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

TN-5300A

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
TN-5305A-WV-T EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature	În stoc	Garanție:

TN-5305A-WV-T

EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature

Disponibilitate:

În stoc

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
TN-5305A-WV-CT-T EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating	Out of stock	Garanție:

TN-5305A-WV-CT-T

EN 50155 unmanaged Ethernet switch with 5 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating

Disponibilitate: Out of stock

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
TN-5308A-WV-T EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature	În stoc	Garanție:

TN-5308A-WV-T

EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature

Disponibilitate:

În stoc

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
TN-5308A-WV-CT-T EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating	Out of stock	Garanție:

TN-5308A-WV-CT-T

EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) ports, M12 connector, single power input, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating

Disponibilitate: Out of stock

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
TN-5308A-8PoE-WV-T EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connector, single power input, -40 to 70°C operating temperature	În stoc	Garanție:

TN-5308A-8PoE-WV-T

EN 50155 unmanaged Ethernet switch with 8 10/100BaseT(X) PoE ports, M12 connector, single power input, -40 to 70°C operating temperature

Disponibilitate:

În stoc

Descriere

The ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

All TN-5300A Series models support an extended operating temperature range of -40 to 70°C. The TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

The TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.

Specificație tehnică

Ethernet Interface

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)	TN-5305A Series models: 5 TN-5308A Series non-PoE models: 8
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)	TN-5308A Series PoE models: 8
Standards	All models: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control TN-5308A Series PoE models only: IEEE 802.3af/at for PoE/PoE+

LED Interface

LED Indicators

PWR, Ethernet ports, PoE ports

Switch Properties

Packet Buffer Size	768 kbits
MAC Table Size	2 K

Power Parameters

Input Current	TN-5305A Series models: max. 0.1 A @ 24 VDC TN-5308A Series non-PoE models: max. 0.1 A @ 24 VDC TN-5308A Series PoE models: max 3.2 A @ 24 VDC
Input Voltage	24/36/48/72/96/110 VDC
Max. PoE Power Output per Port	TN-5308A Series PoE models: 30 W
Total PoE Power Budget	50.2 W
No. of Power Inputs	1
Operating Voltage	16.8 to 137.5 VDC
Power Connector	M12 A-coded male connector
Overload Current Protection	Supported
Reverse Polarity Protection	Supported

Physical Characteristics

Housing	Metal
IP Rating	IP54
Dimensions	TN-5305A Series models: 62.4 x 125.4 x 37.5 mm (2.46 x 4.94 x 1.48 in) TN-5308A Series non-PoE models: 62.4 x 190.4 x 37.5 mm (2.46 x 7.50 x 1.48 in) TN-5308A Series PoE models: 72.4 x 190.4 x 50.0 mm (2.85 x 7.50 x 1.97 in)
Weight	TN-5305A models: 315 g (0.69 lb) TN-5308A non-PoE models: 455 g (1.00 lb) TN-5308A PoE models: 765 g (1.69 lb)
Installation	Wall mounting DIN-rail mounting (with optional kit)
Protection	TN-5300A Series -CT models: PCB conformal coating

Environmental Limits

Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature (package included)	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Altitude	3000 m

Standards and Certifications

EMC	EN 55032/35
EMI	CISPR 32, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
Radio Frequency	FCC
Environmental Testing	IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78
Railway		EN 50121-4 EN 50155 IEC 60571
Railway Fire Protection		EN 45545-2
Safety		IEC 62368-1 UL 62368-1 EN 62368-1
Salt Spray Test		EN 50155
Shock		IEC 60068-2-27, IEC 61373, EN 50155
Vibration		IEC 60068-2-64, IEC 61373, EN 50155
Package Vibration Test		ISTA 1A
Package Drop Test		ISTA 1A

Declaration

Green Product

RoHS, CRoHS, WEEE

MTBF

Time	TN-5305 models: 6,612,892 hrs TN-5308 non-PoE models: 5,260,454 hrs TN-5308 PoE models: 1,816,546 hrs
Standards	Telcordia SR332 Issue 4

Warranty

Warranty Period	5 years
Details	See www.moxa.com/warranty

Package Contents

Device	1 x TN-5300A Series switch
Installation Kit	1 x wall-mounting kit (3 mounting screws included) 2/4 x caps, male, metal, for M12 Ethernet ports (pre-installed on switch)
Documentation	1 x quick installation guide 1 x warranty card
