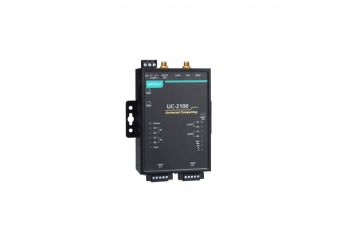

UC-2100-W
Arm Cortex-A8 1 GHz palm-sized IIoT gateway with built-in LTE Cat. M1/NB-IoT module
Producător: MOXA
Producător: MOXA
- Armv7 Cortex-A8 1000 MHz processor
- Integrated LTE NB-IoT/Cat. M1 module with global band support
- LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
- Dual-SIM slots
- Moxa Industrial Linux with 10-year long-term support
- Dual auto-sensing Ethernet ports (10/100 Mbps and 10/100/1000 Mbps)
- Dual CAN ports with industrial CAN 2.0 A/B protocol supported
- microSD socket for storage expansion
- Programmable LEDs and a programmable button for easy installation and maintenance
- -40 to 75°C operating temperature range
Preț de la 2.615,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareUC-2114-T-LXArm Cortex-A8 1 GHz palm-sized IIoT gateway with built-in LTE Cat. M1/NB-IoT moduleÎn stocGaranție: 2.615,00 RON3.216,45 RONIntră în cont pentru a vedea prețurile UC-2114-T-LXArm Cortex-A8 1 GHz palm-sized IIoT gateway with built-in LTE Cat. M1/NB-IoT moduleDisponibilitate:În stocPreț net:2.615,00 RON
Accesorii
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareLTE Stick antenna that covers 704-960/1710-2620 MHz providingÎn stocGaranție: 120,00 RON147,60 RONIntră în cont pentru a vedea prețurile LTE Stick antenna that covers 704-960/1710-2620 MHz providingDisponibilitate:În stocPreț net:120,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareDIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150În stocGaranție: 20,00 RON24,60 RONIntră în cont pentru a vedea prețurile DIN Rail Mounting Kit 35mm, for DE-311/211, NPort 5200/5400, NPort W2250/2150Disponibilitate:În stocPreț net:20,00 RON
Descriere
The UC-2100-W Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual LAN ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as serial and LAN ports, and wireless connections. The versatile communication capabilities allow users to efficiently adapt the UC-2100-W Series for a variety of complex communications solutions running on a compact palm-sized computer.
The UC-2100-W Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide-temperature applications are available for extreme environments such as those found in the Oil and Gas industry. Furthermore, all models use Moxa’s industrial-grade Linux platform, which provides optimized software features and superior long-term support.
Specificație tehnică
- Computer
| CPU | Armv7 Cortex-A8 1 GHz |
| DRAM | 512 MB DDR3 |
| Storage Pre-installed | 8 GB eMMC |
| Pre-installed OS | Moxa Industrial Linux (Debian 9, Kernel 4.4) See ww.moxa.com/MIL |
- Computer Interface
| Storage Slot | Micro SD Slot x 1 |
| Ethernet Ports | Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1 Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1 |
| Serial Ports | RS-232/422/485 ports x 2, software selectable (DB9 male) |
| CAN Ports | CAN 2.0 A/B x 2 (5-pin terminal block) |
| Cellular Antenna Connector | SMA x 1 |
| GPS Antenna Connector | UC-2116-T-LX: SMA x 1 |
| Number of SIMs | 2 |
| SIM Format | Nano |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| Buttons | Reset button |
- Ethernet Interface
| Magnetic Isolation Protection | 1.5 kV (built-in) |
- Serial Interface
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| ESD Protection | 4 kV, for all signals |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
- Serial Signals
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
- CAN Interface
| Industrial Protocols | CAN 2.0A, CAN 2.0B |
| Baudrate | 10 to 1000 kbps |
| Isolation | 2 kV (built-in) |
| Signals | GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+ |
- Cellular Interface
| Band Options | LTE Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 18 (850 MHz) / Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) / Band 28 (700 MHz)Carrier Approval: Verizon, AT&T |
- LED Indicators
| System | Power x 1 Programmable x 1 |
| LAN | 2 per port (10/100 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Wireless Signal Strength | 3 |
| CAN | 2 per port (Tx, Rx) |
- Power Parameters
| Input Voltage | 9 to 48 VDC |
| Power Consumption | 5.8 W |
| Input Current | 0.6 A @ 9 VDC, 0.12 A @ 48 VDC |
- Reliability
| Alert Tools | External RTC (real-time clock) |
| Automatic Reboot Trigger | External WDT (watchdog timer) |
- Physical Characteristics
| Housing | Metal |
| Dimensions (with ears) | 111 x 99 x 34.5 mm (4.37 x 3.90 x 1.36 in) |
| Weight | 396 g (0.87 lb) |
| Installation | Wall-mounting, DIN-rail mounting (with optional kit) |
- Environmental Limits
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
- Standards and Certifications
| Safety | EN 62368-1, IEC 62368-1, UL 62368-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 3 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached) |
| Hazardous Locations | Class I Division 2, ATEX |
| Carrier Approvals | Verizon AT&T |
| Green Product | RoHS, CRoHS, WEEE |
- MTBF
| Time | UC-2114-T-LX: 533,149 hrs UC-2116-T-LX: 496,650 hrs |
| Standards | Telcordia (Bellcore) Standard |
Descarca documentatie
