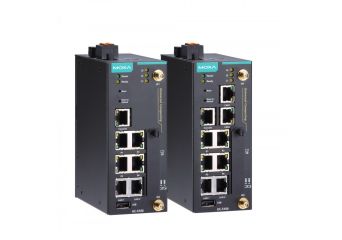

main product photo

UC-5100

Arm Cortex-A8 1 GHz IIoT gateway with 1 mini PCIe expansion slot for wireless module, 4 serial ports, 2 CAN ports, 4 DIs, 4 DOs

Producător: MOXA
Producător: MOXA
  • Armv7 Cortex-A8 1000 MHz processor
  • Dual auto-sensing 10/100 Mbps Ethernet ports
  • 4 software-selectable RS-232/422/485 ports supporting all signals
  • Dual CAN ports with industrial CAN 2.0 A/B protocol supported
  • Moxa Industrial Linux with 10-year long-term support
  • Mini PCIe socket for Wi-Fi/cellular module
  • SD slot for storage expansion
  • -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
  • IEC 61000-6-2/6-4 standards for harsh industrial environments
Preț de la 3.520,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 8 model

Promocja cenowa na model HDR-15-5

UC-5100 - kompaktowy komputer ARM

UC-5100

Modele

  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5101-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    		 Out of stock Garanție:
    3.520,00 RON
    4.329,60 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5101-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5102-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    		 Out of stock Garanție:
    4.180,00 RON
    5.141,40 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5102-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5111-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    		 Out of stock Garanție:
    4.390,00 RON
    5.399,70 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5111-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5112-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    		 Out of stock Garanție:
    5.005,00 RON
    6.156,15 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5112-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 2 CAN ports, 4 DI, 4 DO, and USB, -10 to 60°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5101-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    		 Out of stock Garanție:
    4.390,00 RON
    5.399,70 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5101-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5102-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    		 Out of stock Garanție:
    5.005,00 RON
    6.156,15 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5102-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5111-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    		 Out of stock Garanție:
    5.280,00 RON
    6.494,40 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5111-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    Disponibilitate: Out of stock
  • ModelDisponibilitateGaranțieLista de dorințe
    Prețul tău
    		Prețul tău
    UC-5112-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    În stoc
    		Garanție:
    5.900,00 RON
    7.257,00 RON
    Intră în cont pentru a vedea prețurile
    		Intră în cont pentru a vedea prețurile
    UC-5112-T-LX
    Arm-based Industrial computing platform with Cortex-A8 1 GHz CPU, 4 serial ports, 2 Ethernet ports, SD socket, 2 CAN ports, mini PCIe socket, 4 DI, 4 DO, and USB, -40 to 85°C operating temperature range
    Disponibilitate:
    În stoc

Accesorii

Descriere

The UC-5100 Series embedded computers are designed for industrial automation applications. The computers feature 4 RS-232/422/485 full signal serial ports with adjustable pull-up/pull-down resistors, 2 CAN ports, 2 Ethernet ports, 4 digital input channels, 4 digital output channels, USB interface, and an SD slot in a compact, front-end access housing. To fulfill various industrial applications, the UC-5100 Series computing platform provides models with 2 CAN ports and a mini PCIe slot for wireless connections featuring a dual-SIM design for network redundancy. The UC-5100’s vertical DIN-rail form factor makes it easy to install the computer in a small cabinet. This space-saving solution also facilitates easy wiring, making the UC-5100 a great choice as front-end embedded controllers for industrial applications. Furthermore, all models are equipped with Moxa Industrial Linux that comes with 10-year long-term support as well as optimized software features.

Specificație tehnică

  • Computer
CPU Armv7 Cortex-A8 1 GHz
Pre-installed OS Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
DRAM 512 MB DDR3
Storage Pre-installed 8 GB eMMC
Storage Slot SD slots x 1
Expansion Slots UC-5102-LX: mPCIe slots x 1
UC-5112-LX: mPCIe slots x 1
UC-5102-T-LX: mPCIe slots x 1
UC-5112-T-LX: mPCIe slots x 1
  • Computer Interface
USB 2.0 USB 2.0 hosts x 1, type-A connectors
Number of SIMs 2
SIM Format Micro
Serial Ports RS-232/422/485 ports x 4, software selectable (RJ45)
Digital Input DIs x 4
Digital Output DOs x 4
Buttons Reset button, DIP switch for serial and CAN port configuration
Console Port RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
  • Ethernet Interface
Ethernet Ports Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Magnetic Isolation Protection 1.5 kV (built-in)
  • Serial Interface
Serial Ports 4 x RS-232/422/485
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
  • CAN Interface
No. of Ports UC-5111-LX: 2
UC-5111-T-LX: 2
UC-5112-LX: 2
UC-5112-T-LX: 2
Signals UC-5111-LX: CAN_L, CAN_H, CAN Signal GND
UC-5111-T-LX: CAN_L, CAN_H, CAN Signal GND
UC-5112-LX: CAN_L, CAN_H, CAN Signal GND
UC-5112-T-LX: CAN_L, CAN_H, CAN Signal GND
Terminator UC-5111-LX: N/A, 120 ohms (by DIP)
UC-5111-T-LX: N/A, 120 ohms (by DIP)
UC-5112-LX: N/A, 120 ohms (by DIP)
UC-5112-T-LX: N/A, 120 ohms (by DIP)
  • Digital Inputs
Voltage 0 to 0.8 VDC
2.0 to 5.5 VDC
  • Digital Outputs
Current Rating 24 mA per channel
Voltage 0 to 0.55 VDC
2.5 to 3.3 VDC
  • LED Indicators
System Power x 1
System Ready x 1
LAN 2 per port (10/100 Mbps)
Serial 2 per port (Tx, Rx)
CAN UC-5111-LX: 2 per port (Tx, Rx), UC-5112-LX: 2 per port (Tx, Rx), UC-5111-T-LX: 2 per port (Tx, Rx), UC-5112-T-LX: 2 per port (Tx, Rx)
Wireless Signal Strength UC-5112-LX: Cellular/Wi-Fi x 3
UC-5102-LX: Cellular/Wi-Fi x 3
UC-5102-T-LX: Cellular/Wi-Fi x 3
UC-5112-T-LX: Cellular/Wi-Fi x 3
  • Physical Characteristics
Housing Metal
Weight 600 g (1.32 lb)
Dimensions 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
Installation DIN-rail mounting, Wall mounting (with optional kit)
  • Power Parameters
Input Voltage 9 to 48 VDC
Input Current 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
Power Consumption 11 W
  • Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models:
Product only: -40 to 85°C (-40 to 185°F)
With LTE accessory: -40 to 70°C (-40 to 158°F)
With Wi-Fi accessory: -10 to 70°C (14 to 158°F)
Storage Temperature UC-5101-LX: -20 to 70°C (-4 to 158°F)
UC-5102-LX: -20 to 70°C (-4 to 158°F)
UC-5111-LX: -20 to 70°C (-4 to 158°F)
UC-5112-LX: -20 to 70°C (-4 to 158°F)
UC-5101-T-LX: -40 to 85°C (-40 to 185°F)
UC-5102-T-LX: -40 to 85°C (-40 to 185°F)
UC-5111-T-LX: -40 to 85°C (-40 to 185°F)
UC-5112-T-LX: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Shock IEC 60068-2-27
  • Standards and Certifications
Safety UL 60950-1, EN 60950-1, IEC 60950-1
EMC EN 55032/24, EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Green Product RoHS, CRoHS, WEEE
  • Reliability
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
  • MTBF
Time UC-5101-LX: 728,216 hrs
UC-5101-T-LX: 728,216 hrs
UC-5102-LX: 704,409 hrs
UC-5102-T-LX: 704,409 hrs
UC-5111-LX: 584,470 hrs
UC-5111-T-LX: 584,470 hrs
UC-5112-LX: 568,997 hrs
UC-5112-T-LX: 568,997 hrs
Standards Telcordia (Bellcore) Standard TR/SR
