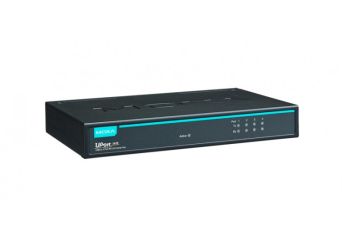

UPort 1410

4-port RS-232 USB-to-serial converters

Producător: MOXA

Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for Windows, WinCE, and Linux
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity

Preț de la 1.170,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

Konwerter 4 portów RS-232 na USB firmy Moxa

UPort 1410

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
UPort 1410 4 Port USB-to-Serial Hub, RS-232	Out of stock	Garanție:		1.170,00 RON 1.439,10 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

UPort 1410

4 Port USB-to-Serial Hub, RS-232

Disponibilitate: Out of stock

Preț net:

1.170,00 RON

Intră în cont pentru a vedea prețurile

Descriere

The UPort® 1410 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1410 Series converts from USB to RS-232. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Specificație tehnică

USB Interface

Speed	12 Mbps, 480 Mbps
USB Connector	USB Type B
USB Standards	USB 1.1/2.0 compliant

Serial Interface

No. of Ports	4
Connector	DB9 male
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF
Serial Standards	RS-232

Serial Signals

RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND

Power Parameters

Input Voltage	5 V for USB port power, 12 V for external power adapter
Input Current	260 mA @ 12 VDC

Physical Characteristics

Housing	Metal
Dimensions	204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in)
Weight	720 g (1.59 lb)

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class 1
EMS	IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m IEC 61000-4-8 PFMF
Safety	UL 60950-1
