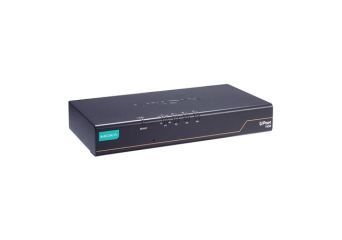

main product photo

UPort 1600-8-G2

8-port RS-232/422/485 USB-to-serial converters

Producător: MOXA
Producător: MOXA
  • USB 3.2 SuperSpeed capability
  • 512-byte on-chip FIFO cache and flow control for enhanced performance
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)
  • Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
  • Cascading of up to 32 ports without requiring additional power adaptors
  • Latching USB cable design for firmer connection
  • Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
  • Serial port with 2 kV isolation protection (for “-I” models)
Preț de la 1.760,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 6 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
UPort 1600-8-G2

UPort 1600-8-G2

Modele

Accesorii

Descriere

The UPort® 1600-8-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. With the cascading capability of the UPort® 1650-8-G2-Hub, you can link up to 32 serial ports without a power adaptor to the UPort. The UPort® 1600-8-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

Specificație tehnică

  • USB Interface
USB Standards USB 1.1/2.0 compliant USB 3.2 Gen 2
Speed 5 Gbps, 480 Mbps, 12 Mbps
No. of USB Ports 1 x UFP for all models, and 3 additional DFP for UPort 1650-8-G2-Hub
USB Connector USB type B (UFP) for all models, and type A (DFP) for UPort 1650-8-G2-Hub
  • Serial Interface
Connector DB9 male
No. of Ports 8
Serial Standards RS-232: UPort 1610-8-G2 RS-232/422/485: All other models
FIFO 512 bytes
Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
Parity None, Even, Odd, Space, Mark
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS, XON/XOFF
RS-485 Data Direction Control Automatic Data Direction Control (ADDC)
Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485 120 ohms
Surge 0.5 kV
Isolation 2 kV (I models)
  • Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
  • Serial Software Features
Windows Drivers Windows 11, 10, 8.1, 8, and 7Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
Linux Drivers Kernel 6.x, 5.x and 4.x
Mac Drivers macOS version (Intel 64): 13, 12, 11 and 10.1x
Virtual Machine VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4)Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64)
Arm®-based Platform Support Linux kernel 6.x, 5.x and 4.x
Android API Android 3.1.x and later
  • Power Parameters
Input Voltage UPort 1610-8-G2/1650-8-G2 models:5 VDC by USB bus power or 12 to 48 VDC by external power adaptorUPort 1650I-8-G2 models/1650-8-G2-Hub:12 to 48 VDC by external power adaptor
Input Current UPort 1610-8-G2: 308 mA @ USB 2.0, 495 mA @ USB 3.2, 260 mA @ 12 VDCUPort 1650-8-G2 models: 466 ma @ USB 2.0, 652 mA & USB 3.2, 350 mA @ 12 VDC UPort 1650I-8-G2 models: 530 mA @ 12 VDCUPort 1650-8-G2-Hub: 2,250 mA @ 12 VDC
Output Power Rating UPort 1650-8-G2-Hub: 900 mA @ 5 VDC (USB 3.2) 500 mA @ 5 VDC (USB 2.0)
  • Physical Characteristics
Housing Metal
Dimensions 216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in)
Weight UPort 1610-8-G2: 650 g (1.43 lb)UPort 1650-8-G2 models: 670 g (1.48 lb) UPort 1650I-8-G2 models: 678 g (1.49 lb) UPort 1650-8-G2-Hub: 689 g (1.52 lb)
IP Rating IP20
  • Environmental Limits
Operating Temperature Standard models: 0 to 60°C (32 to 140°F) -T models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
  • Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF
Safety IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC
Green Product RoHS, CRoHS, WEEE
Vibration IEC 60068-2-6 IEC 60068-2-64
Shock IEC 60068-2-27
Freefall IEC 60068-2-31
  • MTBF
Standards Telcordia Standard SR332, Telcordia Issue 2
Time UPort 1610-8-G2: 1,431,860 hrsUPort 1650-8-G2 models: 951,145 hrs UPort 1650I-8-G2 models: 782,795 hrs UPort 1650-8-G2-Hub: 823,983 hrs
