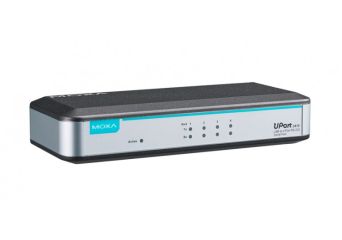

UPort 2410

4-port RS-232 USB-to-serial converters

Producător: MOXA

Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for Windows and Linux
Driver support for MAC OS
Supports fixed-base COM Utility for setting the initial extended COM port number
LEDs for easy monitoring

Preț de la 1.035,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

UPort 2410

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
UPort 2410 4 port USB-to-Serial Converter, RS-232	Out of stock	Garanție:		1.035,00 RON 1.273,05 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

UPort 2410

4 port USB-to-Serial Converter, RS-232

Disponibilitate: Out of stock

Preț net:

1.035,00 RON

Intră în cont pentru a vedea prețurile

Descriere

The UPort® 2410 USB-to-serial converters allow you to connect two or four RS-232 devices to your laptop or workstation through the USB port. The UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and they are perfect for mobile, instrumentation, and point-of-sale applications.

Specificație tehnică

USB Interface

Speed	12 Mbps, 480 Mbps
USB Connector	USB Type B
USB Standards	USB 1.1/2.0 compliant

Serial Interface

Serial Standards	RS-232
No. of Ports	4
Connector	DB9 male
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, XON/XOFF

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Parameters

Input Voltage	5 VDC
Input Current	240 mA @ 5 VDC

Physical Characteristics

Housing	Polycarbonate (PC)
Dimensions	80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)
Weight	Packaged: 455 g (1 lb) Product only: 210 g (0.46 lb)

Environmental Limits

Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature (package included)	-20 to 75°C (-4 to 167°F)
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications

EMC	EN 55032/24
EMI	CISPR 32, FCC Part 15B Class B
EMS	IEC 61000-4-2 ESD: Contact: 8 kV; Air: 4 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
Safety	UL 60950-1
Vibration	IEC 60068-2-6
Freefall	IEC 60068-2-32
