Industrial Internet access
• Wired Ethernet connection support DHCP, Static IP and PPPoE
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance
Designed for industrial usage
• Power Input Range 9 to 48 VDC
• Industrial designed for harsh environment
• Compact metal casing for easy mounting
Secure and reliable remote connection
• Connection manager ensure seamless communication
• Support Multiple Encryption tunnels for data encryption
• Firewall prevents unsafe and unauthorized access
Easy to use and easy maintenance
• User-friendly web interface for human interaction
• Easy configuration for deployment
• Support Central Device Management Platform
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNR500-SNC-A502033Router LAN, 2x Eth, 1x RS232, 1x RS485, 2x DI, 2x DOÎn stocGaranție: 695,00 RON854,85 RONIntră în cont pentru a vedea prețurile NR500-SNC-A502033Router LAN, 2x Eth, 1x RS232, 1x RS485, 2x DI, 2x DODisponibilitate:În stocPreț net:695,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNR500-PNC-A504033Router LAN, 4x Eth, 1x RS232, 1x RS485, 2x DI, 2x DOÎn stocGaranție: 1.085,00 RON1.334,55 RONIntră în cont pentru a vedea prețurile NR500-PNC-A504033Router LAN, 4x Eth, 1x RS232, 1x RS485, 2x DI, 2x DODisponibilitate:În stocPreț net:1.085,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNR500-PNC-A514033Router LAN, Wi-Fi, 4x Eth, 1x RS232, 1x RS485, 2x DI, 2x DOÎn stocGaranție: 1.265,00 RON1.555,95 RONIntră în cont pentru a vedea prețurile NR500-PNC-A514033Router LAN, Wi-Fi, 4x Eth, 1x RS232, 1x RS485, 2x DI, 2x DODisponibilitate:În stocPreț net:1.265,00 RON
Descriere

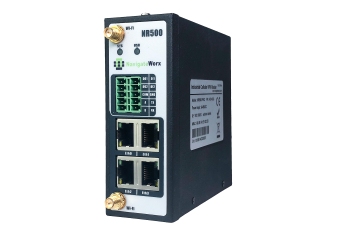

NR500-NC is an advanced industrial router, ready to work in IIoT systems, with support for VPN connections. The series is equipped with 2 Ethernet ports, 1x RS-232, 1x RS-48, digital inputs and outputs. A model with Wi-Fi module is also available.
In addition to many advanced features, the NR500-NC series is supported by the Central Management Platform, which allows for remote firmware updates, configuration and status monitoring.
With its metal casing and simple design, the NR500-NC series is ready for industrial environments.
The kit contains DIN rail holder and basic antennas (only Wi-Fi version).
Specificație tehnică
- Ethernet
| Number of Ports | 2 or 4 (1x WAN) |
| Port Type | Auto 10/100 Mbps auto MDI/MDIX |
| Magnet Isolation Protection | 1.5 KV |
- Wi-Fi (optional)
| Wireless Mode | IEEE 802.11b/g/n Access Point (AP) Client |
| Wireless Speed | 2*2 MIMO 300 Mbps |
| Wireless Security | WPA WPA2 WEP 64/128 AES TKIP |
| Frequency Bands | 2.412 - 2.484 GHz (2.4 GHz ISM band) |
| Antennas | 2 x RP-SMA for Wi-Fi antenna connectors |
- Serial
| Number of Ports | 1 x RS-232 (3 PIN) + 1 x RS-485 |
| Connector | Terminal block |
| ESD Protection | ± 15 KV |
| Band Rate | 300bps to 115200bps |
- Network
| Routing | Static routing RIP OSPF BGP | ||
| Network Protocols | TCP UDP IPv4 ICMP NTP DNS HTTP HTTPS ARP VRRP PPP PPPoE DHCP | ||
| Connection Manager | Ping Detection Timer Reboot ICMP for link detection | ||
| DHCP | Static and dynamic IP allocation | ||
| DDNS | Supported some service providers others can be configured manually | ||
| Network Backup | Wired and Wi-Fi WAN options each of which can be used as backup | ||
| Firewall | Flexible access control of TCP UDP ICMP packets MAC address filter | ||
- DIGITAL INPUT & OUTPUT
| Type | 2 x DI + 2 x DO |
| Connector | Terminal block |
| Isolation | 3KVDC or 2KVrms |
| Absolute maximum VDC | 36VDC |
| Absolute maximum ADC | 100 mA |
- VPN
| OpenVPN | OpenVPN OpenVPN server/client mode, client mode supports up to 5 x OpenVPN tunnels |
| GRE | Layer2 and Layer3, supports up to 5 x GRE VPN tunnels |
| IPsec (opcjonalnie) | IKEv1, IKEv2, supports up to 5 x IPsec VPN tunnels |
| DMVPN (opcjonalnie) | Dynamic Multipoint Virtual Private Networking DMVPN |
| PPTP / L2TP (opcjonalnie) | PPTP or Point-to-Point Tunneling Protocol and L2TP or Layer 2 Tunneling Protocol (L2TP) |
- MONITORING & MANAGEMENT
| Web GUI | HTTP/HTTPS firmware upgrade | ||
| Command Line Interface | SSHv2 and TELNET | ||
| 3rd party platform | Pending | ||
- POWER
| Connector | 3-pin 3.5 mm female socket with lock | ||
| Input Voltage Range | 9 to 48 VDC | ||
| Power Consumption | Idle: 100 mA@12 V Data link: 400 mA (peak) @12 V |
||
- HARDWARE SPECIFICATION
| Watchdog | Built-in watchdog | ||
| LEDs | SYS USR | ||
| Reset Button | Reset/restore to factory default button | ||
| Ingress Protection | IP30 | ||
| Housing & Weight | metal 300 g | ||
| Dimensions | 106mm x 106mm x 40mm | ||
| Installations | DIN-rail mounting | ||
| Operating Temperature | -40 °C to 75 °C | ||
| Operating Humidity | 5% to 95% non-condensing | ||
- APPROVAL
| EMI | EN 55032:2012 Class B | |
| EMS | IEC 61000-4-2 ESD: Level 4 IEC 61000-4-3 RS: Level 3 IEC 61000-4-4 EFT: Level 3 IEC 61000-4-5 Surge: Level 3 IEC 61000-4-6 CS: Level 3 |
|
| Vibration | EN50155 | |
