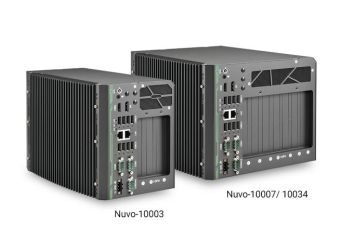

NUVO-10000
Intel 14th/ 13th/ 12th-Gen Core i9/ i7/ i5/ i3 Expansion Box-PC with up to 7 PCIe/ PCI Slots
Producător: Neousys Technology
Producător: Neousys Technology
- Supports Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® LGA 1700 CPU
- Expansion slots: Two x16 PCIe, three x8 PCIe and two x4 PCIe slots (Nuvo-10007)
- Expansion slots: Two x16 PCIe, two x8 PCIe and three PCI slots (Nuvo-10034)
- Expansion slots: One x16 PCIe and two x8 PCIe slots (Nuvo-10003)
- 8x USB 3.2 Gen2 ports with screw-lock
- 1x 2.5G and 1GbE ports with screw-lock
- DP++ / HDMI 1.4b dual display outputs
- 2x 2.5" SATA HDD/ SSD accommodation support RAID control
- Supports single NVIDIA® GPU card with up to 115W TDP
În stoc
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
NUVO-10000
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareNuvo-10003Core i 12/13g,HDMI/DP, PCIe X16,2xPCIe X8În stocGaranție: Nuvo-10003Core i 12/13g,HDMI/DP, PCIe X16,2xPCIe X8Disponibilitate:În stoc-
Descriere
Specificație tehnică
| Nuvo-10007 | Nuvo-10034 | Nuvo-10003 | |
| Processor | i3/i5/i7/i9 12th/13th/14th gen. | ||
| RAM | Up to 64 GB DDR5 | ||
| VGA (DSub) | - | ||
| HDMI | 1 | ||
| DisplayPort | 1 | ||
| Audio | Mic-in, Speaker-out | ||
| Gigabit Ethernet | 2 | ||
| 2,5" HDD | 2 (support RAID 0/ 1) | ||
| mSATA | - | ||
| M.2 | 1x M.2 2280 SATA interface | ||
| miniPCIe | 2x (full-size) mini PCI Express socket with internal micro SIM socket | ||
| PCI Express | 2x PCIe x16 slot @Gen3, 8-lanes 3x PCIe x8 slot @Gen3, 4-lanes 2x PCIe x4 slot @Gen3, 2-lanes |
2x PCIe x16 slot @Gen3, 8-lanes 2x PCIe x8 slot @Gen3, 4-lanes |
1x PCIe x16 slot @Gen3,16-lanes 2x PCIe x8 slot @Gen3, 4-lanes |
| PCI | - | 3x 33MHz/ 32-bit 5V PCI slots | - |
| USB 3.2 | 8 | ||
| RS-232 | 3 | ||
| RS-232/422/485 | 2 | ||
| TPM | Supports dTPM 2.0 | ||
| Working temp. | -25°C ~ +60°C | ||
