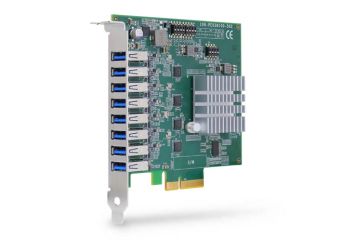

PCIe-USB381F
8-Port USB 3.1 Gen1 Frame Grabber Expansion Card with 4x Independent USB Controllers
- x4 PCI Express® Gen2 interface (2GB/s total bandwidth)
- 8x USB 3.1 Gen1 ports by 4x Fresco FL1100SX xHCI controllers
- Onboard 5VDC regulated power supply, no external power needed
- User-configurable 900mA and 1800mA current limit
- Software-programmable per-port power on/off control
- Supports Windows 7/10 operating systems
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
PCIe-USB381F
Descriere
Neousys PCIe-USB381F is an industrial-grade 8-port USB 3.1 Gen1 (formerly USB 3.0) frame grabber/ host adapter card for machine vision applications. Featuring x4 PCI Express Gen2 interface and four Fresco FL1100SX xHCI controllers, PCIe-USB381F can provide up to 400MB/s sustained data transfer rate per port with four USB3 cameras operating simultaneously, or provide a total bandwidth of 1600MB/s when eight cameras are plugged in.
All eight USB ports of PCIe-USB381F are accessible on the faceplate for easy cabling. Each port can deliver standard 900mA regulated 5V output to power USB3 cameras or user-configurable 1800mA output via onboard jumpers for devices that require higher power consumption. It also supports software-programmable per-port power on/off control to reset cameras or other devices for fault recovery.
The steady 400 MB/s data throughput satisfies the bandwidth requirement of most off-the-shelf industrial USB3 cameras. Pairing reliable 5 VDC power output and per-port on/off control, PCIe-USB381F can benefit a variety of vision-related applications such as machine vision, factory automation and medical imaging.
Specificație tehnică
| USB Ports | 8x USB 3.1 Gen1 ports, compatible with USB 2.0/ 1.1/ 1.0 |
|---|---|
| USB Connectors | 8x panel-accessible Type-A USB3 connectors |
| Bus Interface | 4-lanes, Gen2 PCI Express interface, compliant with PCI Express Base Specification Revision 2.0 |
| USB3 Host Controller | 4x Fresco FL1100SX host controllers, compliant with Intel® xHCI Specification Revision 1.0 |
| Per-Port Current Limit | User-configurable 900mA/ 1800mA per-port current limit |
| Power Requirement | Maximal 2.0 A@ 3.3V from PCI Express bus Maximal 5.5 A@12V from PCI Express bus for all connected USB devices |
| Operating Temperature | 0 ~ 60°C with ambient airflow |
| Dimension | 117.7 mm (W) x 111.2 mm (H) |
