POC-700-FT

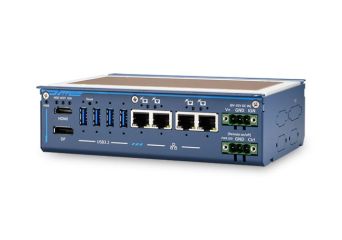

The POC-700-FT is a variant of Neousys' acclaimed POC-700 series, featuring a unique flattop heatsink design that allows it to be applied to other categories of applications. The large thermal conduction area of the flattop heatsink helps effectively transfer heat to the outer surface and makes POC-700-FT particularly applicable for installation inside a sealed enclosure, where airflow is limited.

The POC-700-FT series is equipped with a Intel Core i3-N305 8-core/ 8-thread processor, along with 32EUs UHD Graphics, or an Atom x7425E 4-core/ 4-thread processor, with 24EUs UHD Graphics. Both options are optimized for AI inference tasks via Intel OpenVINO. The system supports DDR5-4800 memory and includes an M.2 2280 M key NVMe slot for fast disk access. It also has four USB 3.2 Gen2 ports and four GigE PoE+ ports with screw-lock mechanisms, ensuring reliable connections for Ethernet/ USB cameras. POC-700-FT also offers COM ports and isolated DIO for monitoring and controlling devices, as well as a mini-PCIe slot that accommodates wireless modules such as WiFi, LTE/5G, or CAN bus devices.

The flattop heatsink not only facilitates in-cabinet thermal dissipation, but also reduces the overall size of the machine by 20% for confined spaces. It offers a great solution for customers who want fanless yet efficient thermal conduction when placing the machine in a cabinet. Combining multiple Ethernets and rich I/O functions, POC-700-FT fits for deployed in challenging environments, such as oil/ gas, mining, those requiring dust and water resistance.
